MMBT2222A 1P SOT-23 40V 600mA NPN Transistor

Product Description: MMBT2222A 1P SOT23 40V 600mA NPN Transistor

The MMBT2222A is a high-performance NPN transistor designed for use in a wide range of electronic applications, including signal amplification, switching, and general-purpose use in low-to-moderate power circuits. Housed in the compact SOT-23 package, the MMBT2222A offers 40V of collector-emitter voltage and can handle up to 600mA of collector current, making it suitable for both signal switching and small motor control applications.

As an NPN transistor, the MMBT2222A is commonly used in switching circuits, where it can act as a switching element to turn on or off current flow to other parts of a circuit. It can also be used as an amplifier in signal processing applications, providing linear amplification for analog signals. The MMBT2222A is also known for its fast switching speed and low saturation voltage, which make it ideal for high-speed digital circuits and logic-level signal processing.

The compact size and low power consumption of the MMBT2222A make it perfect for space-constrained applications in portable electronics, communication devices, consumer electronics, and signal processing circuits. Whether used in audio amplification, power switching, or digital logic circuits, this transistor provides a reliable solution for a variety of low-voltage and medium-power applications.

Key Features:

• High Voltage Rating: With a collector-emitter voltage rating of 40V, the MMBT2222A is ideal for medium-voltage applications where higher voltage tolerance is needed.
• High Current Capacity: The transistor can handle a collector current of up to 600mA, making it suitable for use in switching circuits and small motor control.
• Compact SOT-23 Package: The SOT-23 package offers a small footprint, making the MMBT2222A ideal for space-constrained applications in portable electronics and consumer devices.
• Fast Switching Speed: The MMBT2222A features fast switching characteristics, making it ideal for high-speed digital circuits and logic-level switching applications.
• Low Saturation Voltage: The low saturation voltage of the MMBT2222A helps minimize power loss, improving efficiency in both switching and amplification modes.
• Low Power Consumption: The MMBT2222A operates with low power consumption, making it an excellent choice for battery-operated devices and energy-efficient systems.
• General-Purpose Use: Suitable for a wide range of applications, including switching, amplification, and signal processing in low-to-moderate power circuits.
• RoHS Compliant: The MMBT2222A is RoHS compliant, adhering to international environmental standards for lead-free manufacturing.

Applications:

• Signal Switching: The MMBT2222A is commonly used in switching applications where it can control the flow of current in digital circuits, such as logic-level switching and signal routing.
• Amplification: It is also used in signal amplification circuits, such as audio amplifiers, RF amplifiers, and sensor signal conditioning, where the transistor helps to boost weak signals to a higher level.
• Motor Control: The MMBT2222A is often used for low-power motor control applications, where it can switch the power to small DC motors in systems like robots, toys, and small appliances.
• Power Supply Switching: The MMBT2222A can be used for high-speed switching in power supplies, enabling the control of power on/off in a variety of electronic systems.
• Communication Systems: In communication devices such as radios, transceivers, and telecommunications equipment, the MMBT2222A can be used for signal amplification and switching tasks.
• Portable Electronics: With its compact size and low power consumption, the MMBT2222A is suitable for a wide range of applications in battery-powered portable electronics, including smartphones, wearable devices, and consumer gadgets.
• Home Appliances: The MMBT2222A can be used in home appliances for controlling on/off switching and signal processing in smaller electronics.

The MMBT2222A NPN transistor offers a versatile and reliable solution for switching, amplification, and signal processing in both low-power and medium-power applications. Its small form factor, fast switching speed, and high voltage rating make it an excellent choice for compact, high-efficiency circuits.

Package Included: 1 x MMBT2222A 1P SOT23 40V 600mA NPN Transistor

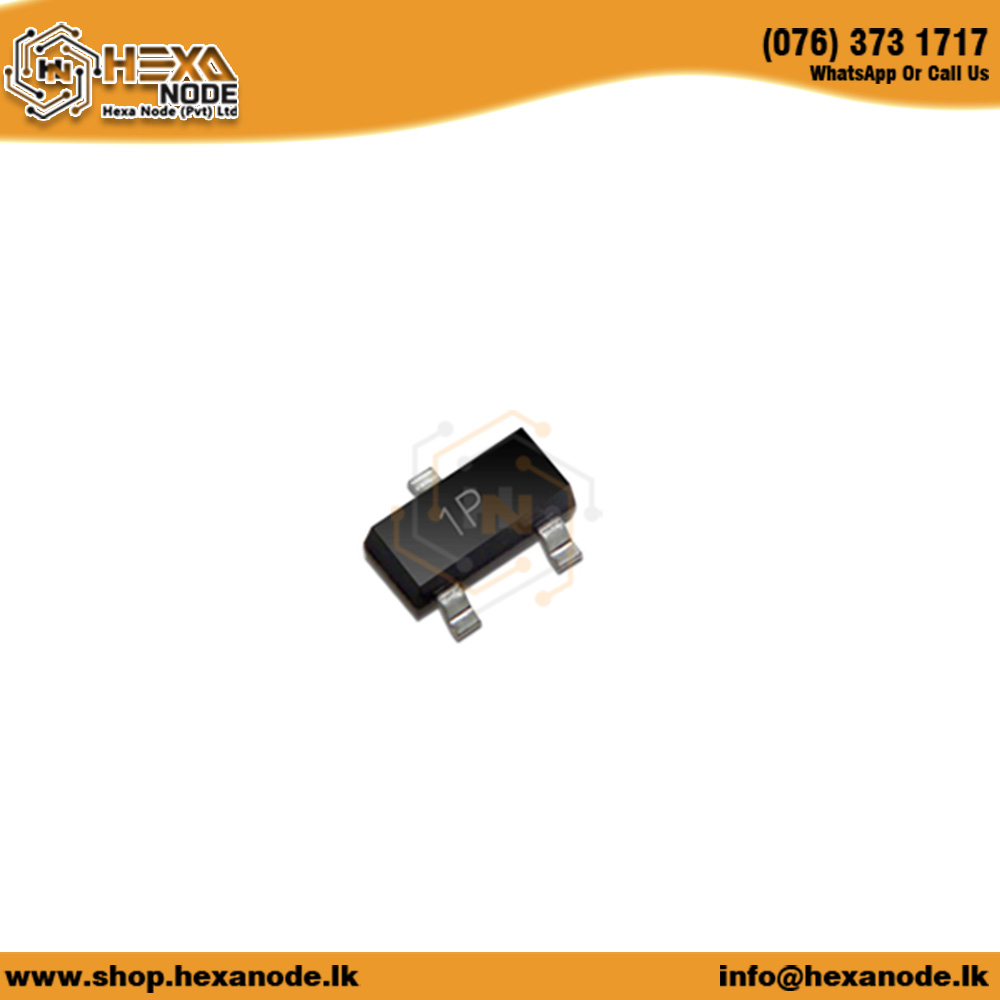

Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance!
