74LS19 / 7419 Hex Schmitt Trigger Inverter

Product Description: 74LS19 Hex Schmitt Trigger Inverter

The 74LS19 is a Hex Schmitt Trigger Inverter IC, consisting of six independent inverters, each with Schmitt trigger inputs. This makes it ideal for applications requiring stable signal inversion with noise immunity and hysteresis. The Schmitt trigger input provides a clean, noise-resistant transition between logic states, ensuring reliable signal processing even in noisy environments or when the input signal is slowly varying or noisy. With a typical propagation delay of 13ns, the 74LS19 offers fast and precise signal inversion. As part of the Low Power Schottky (LS) logic family, this IC offers excellent performance while maintaining low power consumption, making it a versatile and reliable component for various digital logic circuits.

Features:

• Hex Schmitt Trigger Inverters: The 74LS19 includes six independent inverters, each equipped with Schmitt trigger inputs for enhanced noise immunity and stable logical state transitions.
• Schmitt Trigger Inputs: The Schmitt trigger action provides built-in hysteresis, ensuring clean transitions between logic levels, which is ideal for noisy or slow input signals.
• Fast Propagation Delay: With a typical propagation delay of just 13ns, the IC ensures quick response times for fast digital circuits.
• Low Power Schottky (LS) Technology: Designed for low power consumption with high-speed performance, ensuring efficient operation even in power-sensitive applications.
• Wide Supply Voltage Range: Operates across a wide voltage range of 4.5V to 5.5V, suitable for a variety of digital circuits.
• 14-pin DIP package: Standard 14-pin Dual In-line Package (DIP) for easy integration into breadboards or through-hole sockets.

Applications:

• Digital Logic Systems: Ideal for implementing basic NOT gates or logic inversion in digital circuits, where signal noise immunity is important.
• Signal Conditioning: Used for cleaning up noisy signals or slow transitions, especially in systems where input signals may be prone to noise or distortion.
• Clock and Timing Circuits: Often used in timing circuits or oscillators where precise signal inversion and noise resistance are needed for accurate operation.
• Signal Processing and Filtering: Commonly applied in circuits requiring the filtering of unwanted noise from signals, ensuring more stable and reliable output.
• Consumer Electronics and Communication Systems: Found in digital communication systems and consumer electronics where reliable signal inversion and noise immunity are critical.

Package Included:
1 x 74LS19 Hex Schmitt Trigger Inverter

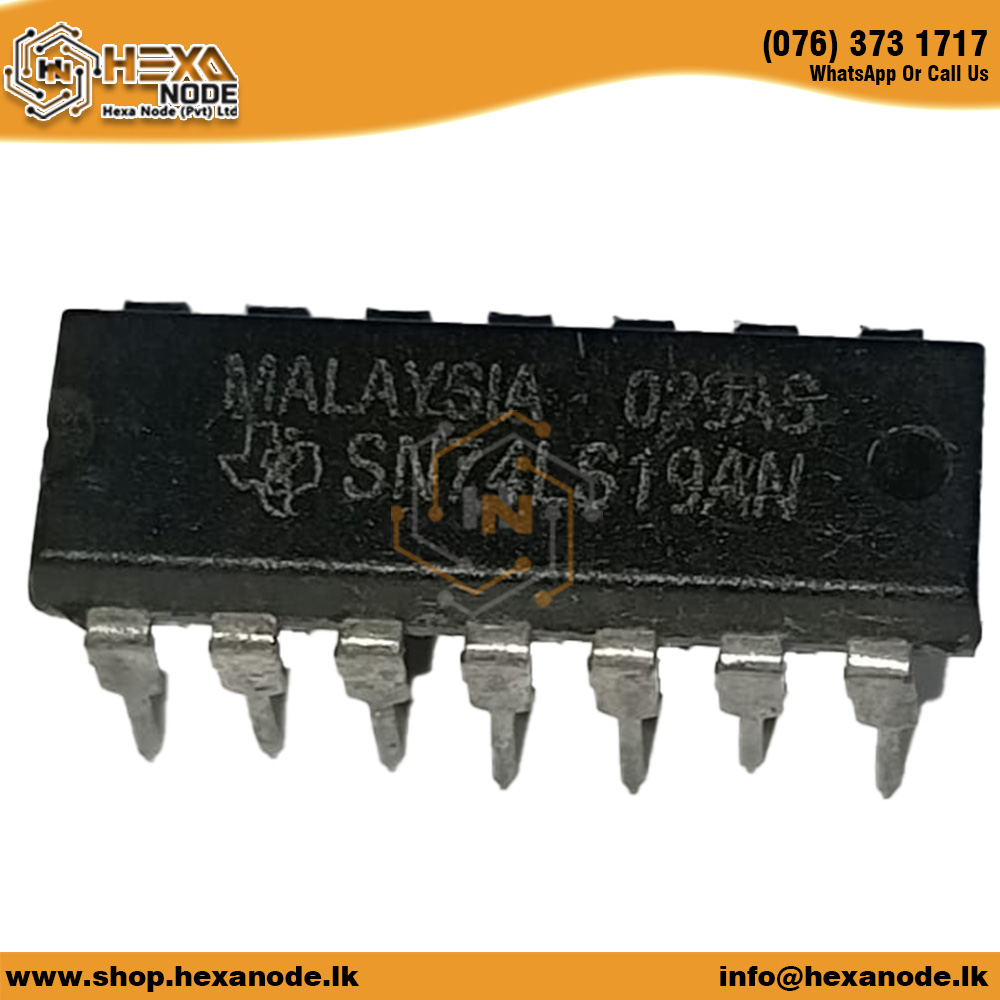

Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance.
