BC817-25 6B SOT-23 45V 500mA NPN Transistor

Product Description: BC817-25 6B SOT23 45V 500mA NPN Transistor

The BC817-25 is a high-performance NPN transistor housed in a compact SOT-23 package, designed for switching and amplification applications. With a collector-emitter voltage rating of 45V and a collector current rating of 500mA, this transistor is well-suited for medium power circuits. The BC817-25 offers low saturation voltage (V_CE(sat)) of approximately 0.3V at 500mA, making it highly efficient for switching operations while minimizing power loss in both analog and digital circuits.

This transistor’s high current gain (h_FE) and fast switching speeds make it ideal for signal amplification in audio circuits, pulse-width modulation (PWM) systems, and high-speed switching applications. Its compact SOT-23 package allows for easy integration into surface-mount technology (SMT) designs, saving space and enhancing the overall performance of high-density electronic circuits.

Key Features:

• NPN Configuration: The BC817-25 is an NPN transistor, meaning it operates by allowing current to flow from the collector to the emitter when the base is biased positively. It is ideal for low-side switching and signal amplification applications.
• Collector-Emitter Voltage (V_CEO): The BC817-25 is rated at 45V, making it ideal for moderate-voltage circuits in switching, amplification, and voltage regulation applications.
• Collector Current (I_C): Capable of handling 500mA, it is suitable for moderate-power amplification and switching tasks, supporting current flow for low-power systems.
• Low Saturation Voltage (V_CE(sat)): Typically 0.3V at 500mA, this feature reduces the power dissipation in switching applications and enhances efficiency.
• High Current Gain (h_FE): The transistor offers a current gain typically ranging from 110 to 800, which ensures effective signal amplification in low-power circuits.
• Fast Switching Speed: The BC817-25 provides fast switching times, making it perfect for PWM circuits, high-frequency switching, and logic control circuits that require rapid response.
• Compact SOT-23 Package: The SOT-23 package ensures space-efficient integration in modern surface-mount technology (SMT) circuits, reducing the PCB footprint for high-density designs.
• RoHS Compliant: The BC817-25 complies with RoHS standards, ensuring it is free from hazardous substances and is environmentally friendly, making it suitable for modern electronic manufacturing processes.

Applications:

• Signal Amplification: Ideal for low-power audio amplifiers, pre-amplifiers, radio frequency (RF) amplifiers, and analog signal processing, the BC817-25 provides high current gain with low distortion for clean signal amplification.
• Switching Circuits: Perfect for low-side switching applications, such as logic gates, relay drivers, and PWM control circuits, ensuring fast, reliable switching in digital and power control systems.
• Voltage Regulation: Used in low-dropout regulators (LDOs) and voltage regulation circuits, the BC817-25 ensures stable output voltage and efficient operation for sensitive components in low-voltage systems.
• PWM Control and Pulse Circuits: Suitable for use in PWM circuits, oscillators, timing circuits, and frequency modulation systems, where it efficiently handles the switching and modulation tasks.
• Inverter Circuits: Often used in DC-AC inverters and battery-powered systems, providing efficient switching for applications such as solar power systems, UPS (uninterruptible power supplies), and portable inverters.
• Battery-Powered Devices: The BC817-25 is well-suited for battery-operated devices such as portable electronics, wireless sensors, and low-power gadgets, offering minimal power consumption and extended battery life.

The BC817-25 is a versatile and reliable NPN transistor, providing excellent performance for signal amplification, switching, and voltage regulation in low to medium power applications. Its compact size, high current gain, and fast switching speeds make it an essential component for modern electronic designs that require efficiency and reliability in space-constrained and battery-operated systems.

Package Included: 1 x BC817-25 6B SOT23 45V 500mA NPN Transistor

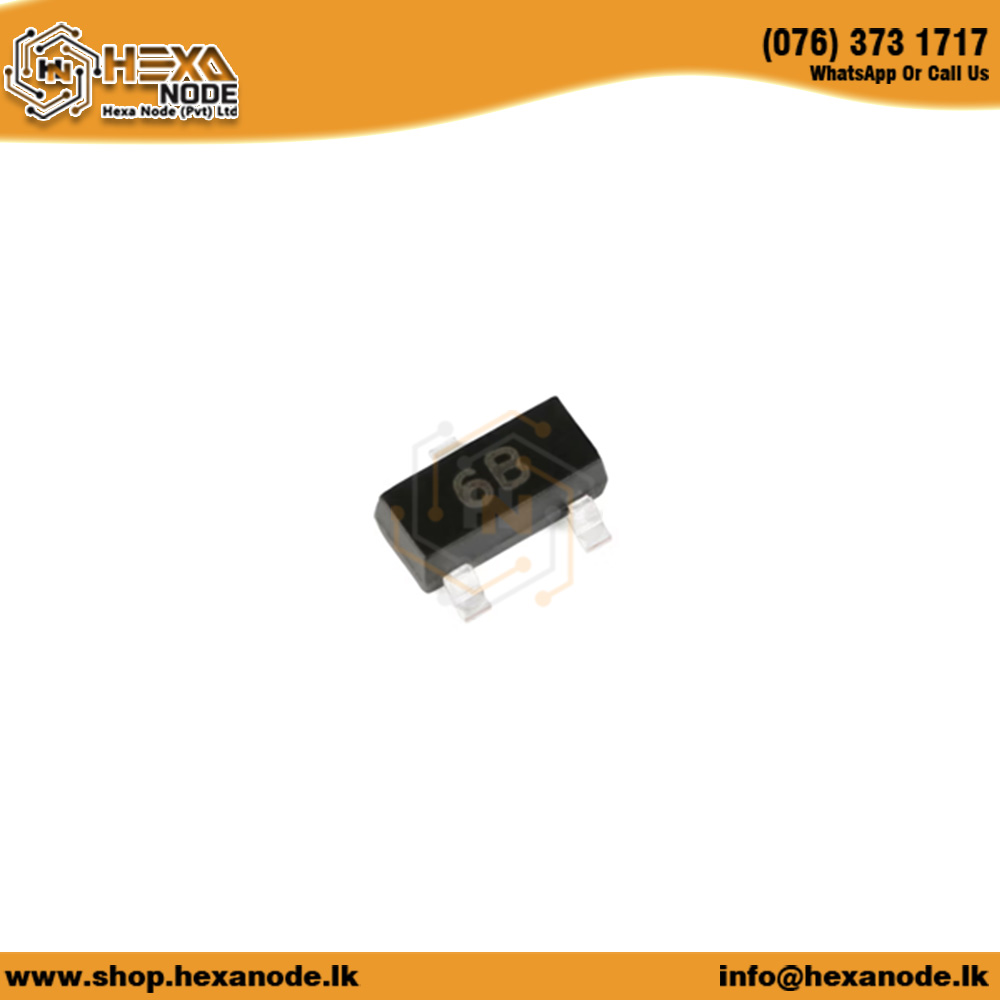

Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance!
