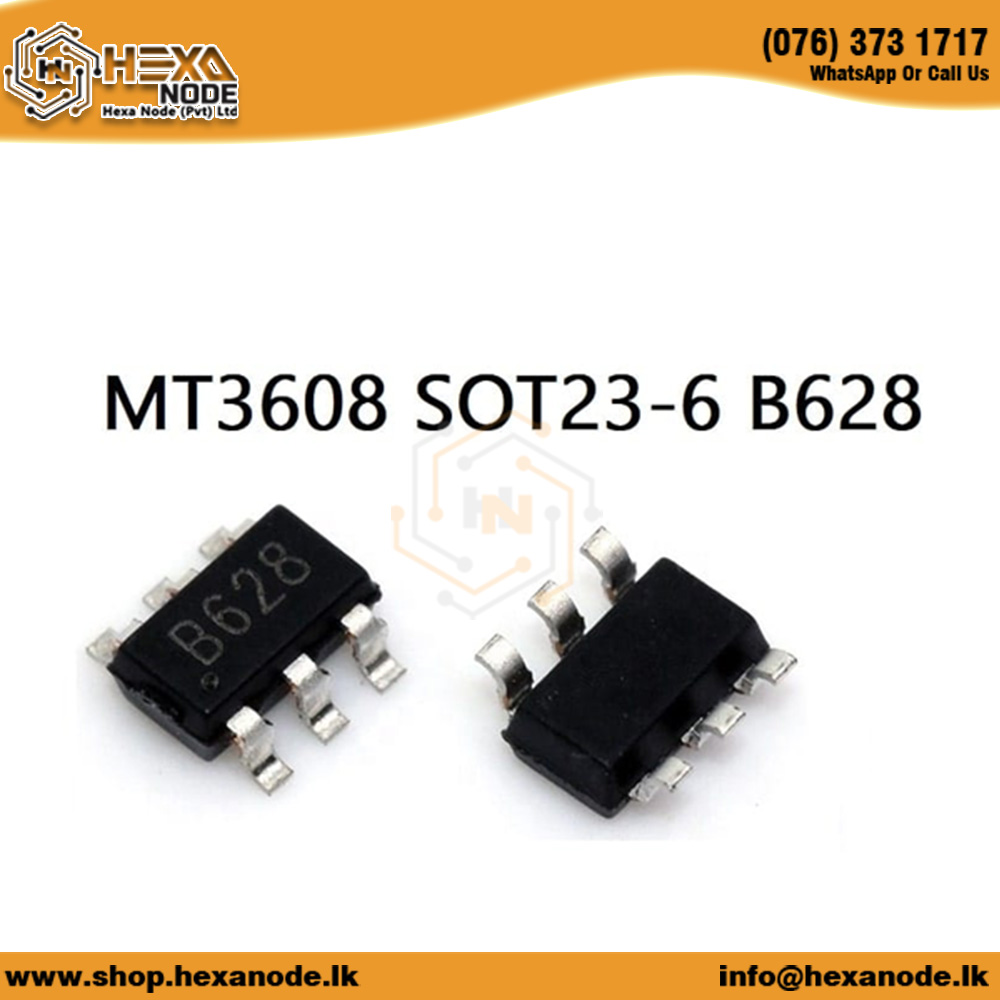

MT3608 B628 SOT-23 High Efficiency 1.2MHz 2A Step Up Converter IC

The MT3608 SOT23 is a highly efficient, constant frequency step-up converter designed for low power applications. This 6-pin SOT-23 package device is ideal for powering small electronic devices that require a boost in voltage, making it a versatile choice for various applications in consumer electronics and battery-powered equipment.

Features:

• Integrated 80mΩ Power MOSFET: Reduces power loss and enhances efficiency.
• Input Voltage Range: Operates with input voltages from 2V to 24V, accommodating a wide range of power sources.
• Fixed Switching Frequency: The device switches at a constant frequency of 1.2MHz, allowing the use of smaller external components.
• Adjustable Output Voltage: Capable of generating output voltages up to 28V, providing flexibility for different applications.
• Internal 4A Switch Current Limit: Protects the device from overcurrent conditions.
• High Efficiency: Achieves efficiencies up to 97%, optimizing battery life and performance.
• Automatic Pulse Frequency Modulation: Adjusts operation mode at light loads to enhance efficiency further.
• Thermal Protection: Includes thermal overload protection to prevent damage during operation.

Application:
The MT3608 is suitable for various applications, including:

• Battery-Powered Equipment: Ideal for devices that rely on battery power, such as portable electronics.
• Set-Top Boxes and Modems: Provides necessary voltage boosts for cable and DSL modems.
• LCD Bias Supply: Used in LCD displays requiring stable voltage supplies.
• Networking Cards: Powers PCI or PCI Express slots, ensuring reliable operation.

Package Included: 1 x MT3608 SOT23. Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance!
