ULN2003APG / ULN2003 50V 0.5A SOP Seven Darlington Arrays

Product Description: ULN2003APG SOP Seven Darlington Arrays

The ULN2003APG is a versatile integrated circuit featuring seven Darlington transistor arrays in a compact SOP package. This device is designed to facilitate the control of high-current loads, making it ideal for applications such as relay driving, motor control, and LED lighting.

Each of the seven Darlington pairs can handle up to 500mA of current and support voltage levels up to 50V, providing excellent amplification for input signals. The ULN2003APG includes built-in flyback diodes, which protect the circuit from voltage spikes generated by inductive loads, ensuring safe and reliable operation.

Due to its ease of use and efficiency, the ULN2003APG is widely utilized in automotive systems, industrial automation, and consumer electronics, enabling seamless control of high-power devices while maintaining isolation between control and load circuits. Its robust performance and straightforward pin configuration make it a preferred choice for engineers and designers in various electronic applications.

Key Features:

• Seven Darlington Pairs: Offers seven independent Darlington pairs in a single package, simplifying the design and reducing component count.
• High Current Capability: Each output can handle up to 500mA, enabling control of high-power devices and loads with ease.
• Wide Supply Voltage Range: Operates from 5V to 50V, making it suitable for various applications and environments.
• Integrated Flyback Diodes: Built-in diodes protect against voltage spikes, enhancing reliability when driving inductive loads like motors and solenoids.
• Compact SOP Package: Space-efficient design allows for easy integration into compact circuit layouts.

Applications:

• Relay Drivers: Ideal for controlling relay coils in automation and control systems.
• Motor Control: Commonly used for driving DC motors and stepper motors in robotics and automation.
• LED Drivers: Suitable for controlling multiple LED arrays in lighting applications.
• Sensor Interface: Often utilized to interface with sensors requiring higher current for actuation.

Package Included:

• 1 x ULN2003APG SOP Seven Darlington Arrays

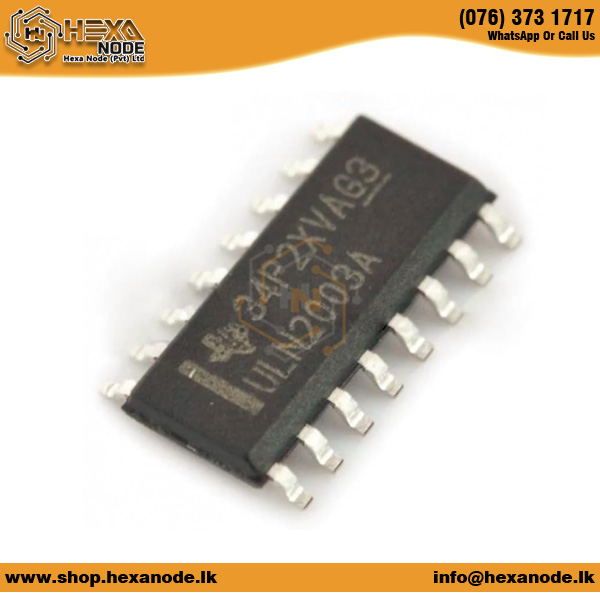

Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance.

Enhance your circuit designs with the ULN2003APG Darlington Array, providing reliable high-current control for a variety of applications!
