SN7408N / 7408 DIP Quad 2-Input And Gate

Product Description: SN7408N DIP Quad 2-Input AND Gate

The 7408 is a Quad 2-Input AND Gate integrated circuit (IC) that contains four independent AND gates in a single 14-pin Dual In-line Package (DIP). Each gate provides a digital output that is the logical AND of two inputs, making it ideal for performing logical operations where both conditions must be true to produce a high output. The 7408 is part of the TTL (Transistor-Transistor Logic) family, designed for high-speed operation and reliability in various digital logic applications. With a typical propagation delay of just 10ns, this IC ensures fast and efficient signal processing in time-sensitive digital systems.

Features:

• Quad 2-input AND gates: The 7408 IC contains four independent AND gates, each capable of performing a logical AND operation on two digital input signals.
• High-speed operation: With a typical propagation delay of only 10ns, the 7408 ensures quick response times in digital circuits.
• TTL logic family: Built using TTL technology, the 7408 is known for its reliability and high-performance capabilities in logic circuits.
• Wide voltage range: The IC operates at supply voltages ranging from 4.5V to 5.5V, making it suitable for a wide range of digital systems.
• 14-pin DIP package: The IC comes in a standard 14-pin DIP form factor, making it easy to integrate into breadboards, PCBs, or socketed designs.
• Low power consumption: Despite its fast performance, the 7408 is designed for low power consumption, making it suitable for battery-powered or energy-efficient devices.

Applications:

• Digital logic circuits: The 7408 is perfect for implementing AND logic in combinational logic circuits, such as arithmetic and control units.
• Signal processing: Commonly used for logical signal processing, where multiple conditions must be met before activating a process or signal.
• Control systems: Ideal for systems where multiple conditions or inputs must be satisfied for an action to take place, such as in control logic or gate arrays.
• Timing circuits: Can be used in timing and sequential circuits that require conditional outputs based on multiple input signals.
• Embedded systems: A versatile IC in embedded designs, often found in microcontroller interfacing, signal conditioning, and control applications.

Package Included:
1 x SN7408N DIP Quad 2-Input AND Gate

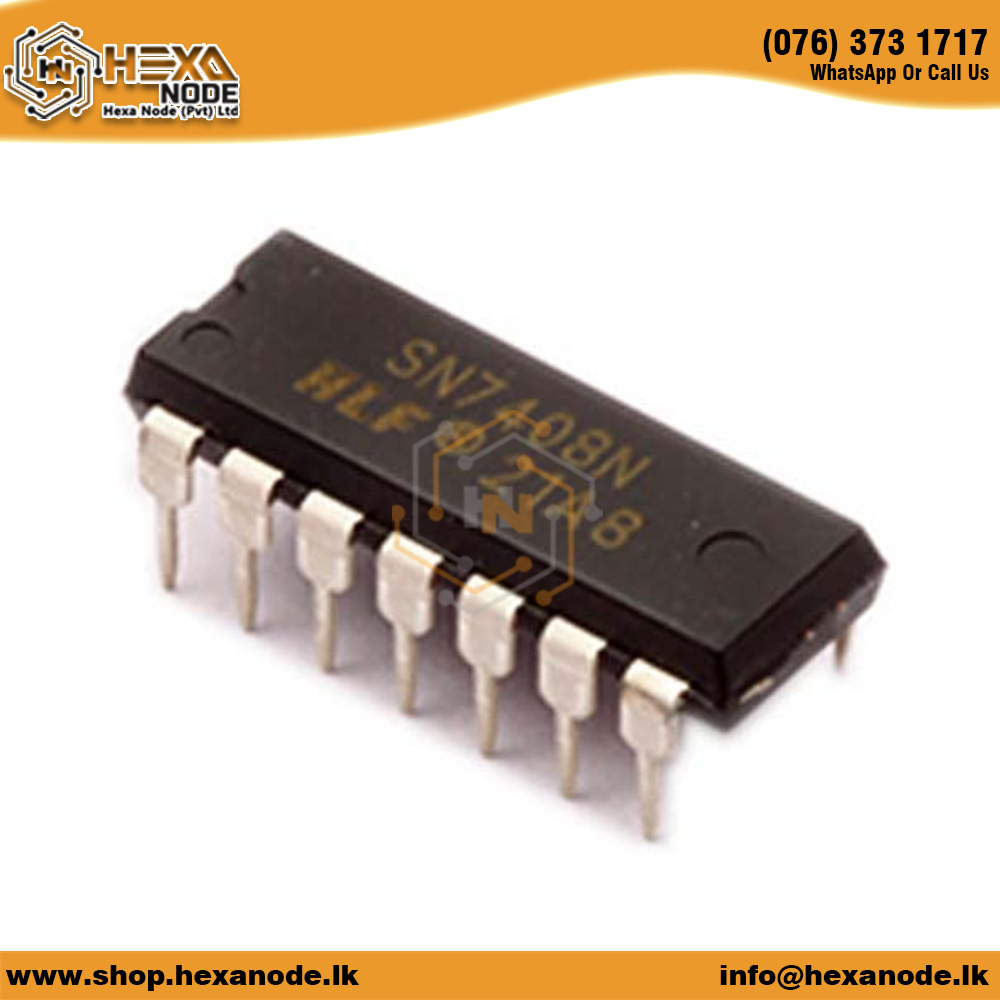

Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance.
