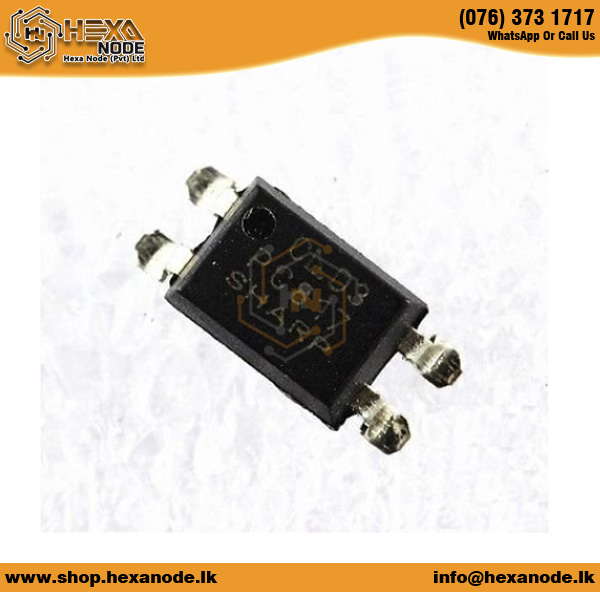

PC817 SMD / SOP Optocupler

Product Description: PC817 SOP Optoisolator

The PC817 SMD/SOP Optocoupler is a widely used electronic component designed to provide electrical isolation between different parts of a circuit while allowing for signal transmission. This optocoupler features an integrated infrared LED and a phototransistor, enabling it to transmit data without direct electrical connection, which is crucial for protecting sensitive components from voltage spikes and noise.

With a compact SOP package, the PC817 is suitable for space-constrained applications, making it ideal for use in printed circuit boards (PCBs). It offers a high isolation voltage of up to 5,000V, ensuring safety in various applications, including power supplies, signal processing, and communication systems.

The PC817 is known for its fast response time and low power consumption, making it an excellent choice for high-speed data transmission in industrial automation, consumer electronics, and telecommunication devices. Its reliability and performance have made it a staple in the design of circuits requiring robust isolation and effective signal coupling.

Key Features:

• High Isolation Voltage: Provides up to 5,000V of isolation, ensuring safety and protection for connected devices.
• Compact SOP Package: Space-efficient design allows for easy integration into small circuit boards, making it ideal for compact applications.
• Wide Operating Temperature Range: Operates effectively in temperatures from -40°C to +100°C, ensuring reliability in diverse environments.
• Fast Switching Speed: Capable of fast response times, making it suitable for high-speed applications.
• Low Input Current: Requires minimal input current to operate, improving overall efficiency.

Applications:

• Signal Isolation: Commonly used in microcontroller and digital circuit applications to isolate different voltage levels.
• Switching Power Supplies: Ideal for feedback and control in switching power supplies, enhancing safety.
• Data Communication: Used in communication interfaces to prevent noise and interference between systems.
• Industrial Automation: Suitable for isolating sensors and control signals in industrial environments.

Package Included:

• 1 x PC817 SOP Optoisolator

Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance.

Enhance your electronic designs with the PC817 optoisolator, providing reliable signal isolation and protection for a wide range of applications!
