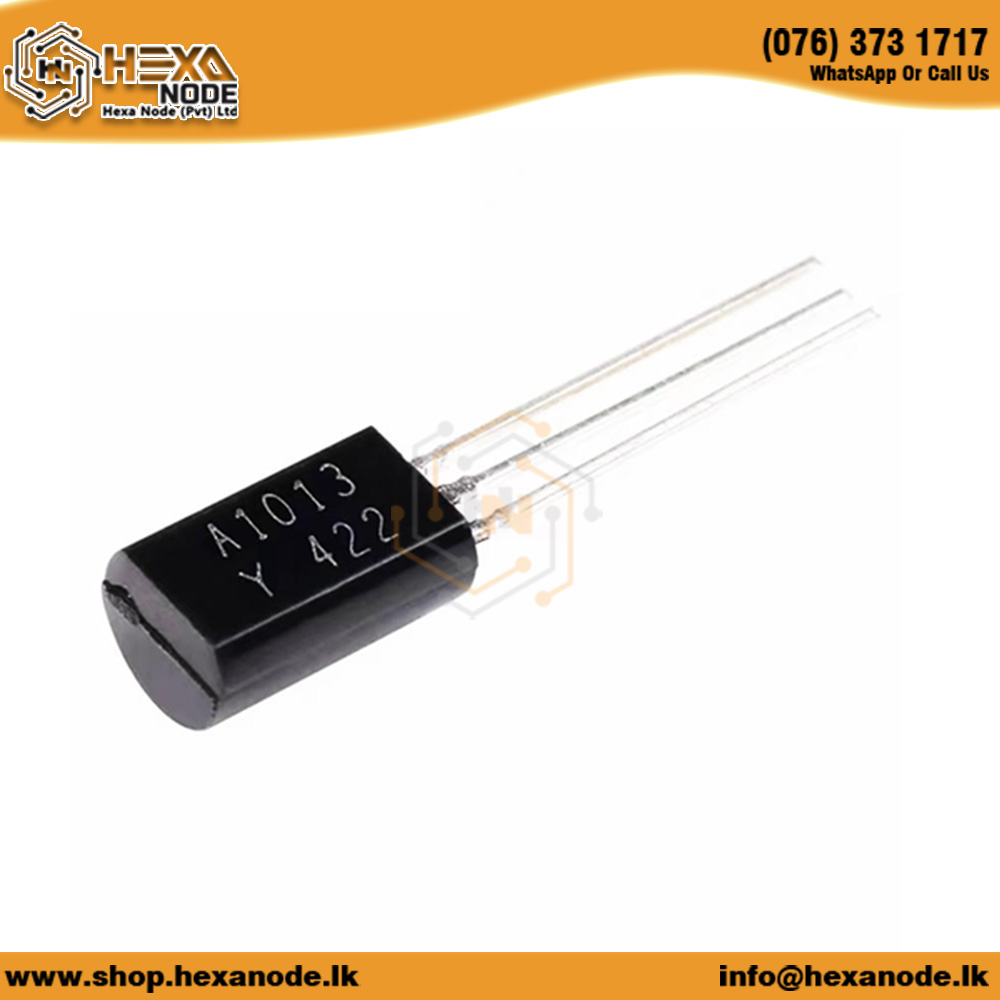

A1013 TO-92 PNP Silicon Epitaxial Planar Transistor

Product Description: A1013 PNP Transistor TO-92

The A1013 PNP Transistor TO-92, also known as 2SA1013, is a high-performance silicon bipolar junction transistor designed for general-purpose amplification and switching applications. Its compact TO-92 package makes it suitable for various electronic circuits, especially in low to medium power applications.

Features

• Transistor Type: PNP
• Package Type: TO-92
• Maximum Collector Current (Ic): 2 A
• Maximum Collector-Emitter Voltage (Vce): -160 V
• Maximum Collector-Base Voltage (Vcb): -160 V
• Maximum Emitter-Base Voltage (Veb): -6 V
• Power Dissipation (Pc): 0.9 W
• DC Current Gain (hFE): Ranges from 60 to 320, providing effective signal amplification.
• Transition Frequency (ft): Up to 15 MHz, suitable for audio and signal processing applications.

Application

The A1013 PNP Transistor TO-92 is suitable for:

• Audio Amplification: Commonly used in audio output stages and amplifiers.
• Switching Applications: Efficiently controls small loads like relays and motors.
• Voltage Regulation: Utilized in voltage regulator circuits to maintain stable output.
• General Purpose Applications: Effective in various electronic projects requiring reliable performance.

Package Included: 1 x A1013 PNP Transistor TO-92. Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance!
