MMBT3904 1AM SOT-23 60V 200mA NPN Transistor

Product Description: MMBT3904 1AM SOT23 60V 200mA NPN Transistor

The MMBT3904 is a widely used NPN transistor that comes in the compact SOT-23 package. This transistor is designed for medium-power switching and signal amplification applications in both analog and digital circuits. With a collector-emitter voltage rating of up to 60V and a collector current capacity of 200mA, it is suitable for a wide range of applications requiring moderate voltage and current handling.

This NPN transistor offers fast switching characteristics and is designed for use in low-to-medium power circuits, making it ideal for applications in signal processing, switching circuits, and audio amplification. The MMBT3904 also features low saturation voltage, improving the efficiency of switching applications by minimizing energy loss during transitions.

Whether used for digital logic circuits, amplification of analog signals, or small motor control applications, the MMBT3904 offers compact, reliable, and cost-effective performance. It is widely used in consumer electronics, communication systems, and portable devices due to its versatile characteristics and small footprint.

Key Features:

• High Voltage Rating: The MMBT3904 has a collector-emitter voltage rating of 60V, making it suitable for applications where medium voltage tolerance is required.
• Medium Current Capacity: Capable of handling up to 200mA of collector current, the transistor is ideal for switching and amplification tasks in low-to-medium power circuits.
• Compact SOT-23 Package: The transistor is housed in the small SOT-23 package, making it suitable for space-constrained applications in portable electronics, consumer devices, and communication systems.
• Fast Switching Speed: The MMBT3904 is designed for fast switching operations, making it ideal for digital logic circuits and high-speed applications.
• Low Saturation Voltage: The low saturation voltage of the MMBT3904 helps reduce energy loss and improve efficiency in switching circuits, particularly in battery-powered devices.
• General-Purpose Transistor: This NPN transistor is a versatile, general-purpose solution for signal amplification, switching, and logic circuits.
• RoHS Compliant: The MMBT3904 is RoHS compliant, meeting international environmental standards for lead-free electronics.

Applications:

• Signal Amplification: The MMBT3904 is widely used in signal amplification applications, including audio amplification, radio frequency amplification, and sensor signal conditioning.
• Switching Circuits: Ideal for low-to-medium power switching, the MMBT3904 can be used in logic-level switches, relay drivers, and power management circuits.
• Digital Logic Circuits: The MMBT3904 is suitable for digital logic circuits in computers, microcontrollers, and communication systems that require reliable switching at moderate voltage levels.
• Portable Electronics: With its small size and low power consumption, the MMBT3904 is ideal for use in battery-powered portable electronics, including smartphones, wearable devices, and consumer gadgets.
• Small Motor Control: The MMBT3904 can be used for small motor control in robotics, toys, and automation systems that require switching or regulating power to DC motors.
• Consumer Electronics: This transistor is widely used in consumer electronics such as televisions, audio equipment, home appliances, and lighting control systems, ensuring reliable performance in power management and amplification circuits.
• Communication Devices: In communication equipment such as radios and telecom systems, the MMBT3904 provides signal amplification and switching for various analog and digital tasks.

The MMBT3904 NPN transistor is an excellent choice for a wide range of signal amplification, switching, and control applications due to its high voltage tolerance, low saturation voltage, and fast switching speed. It offers a cost-effective and reliable solution for medium-power circuits and compact designs.

Package Included: 1 x MMBT3904 1AM SOT23 60V 200mA NPN Transistor

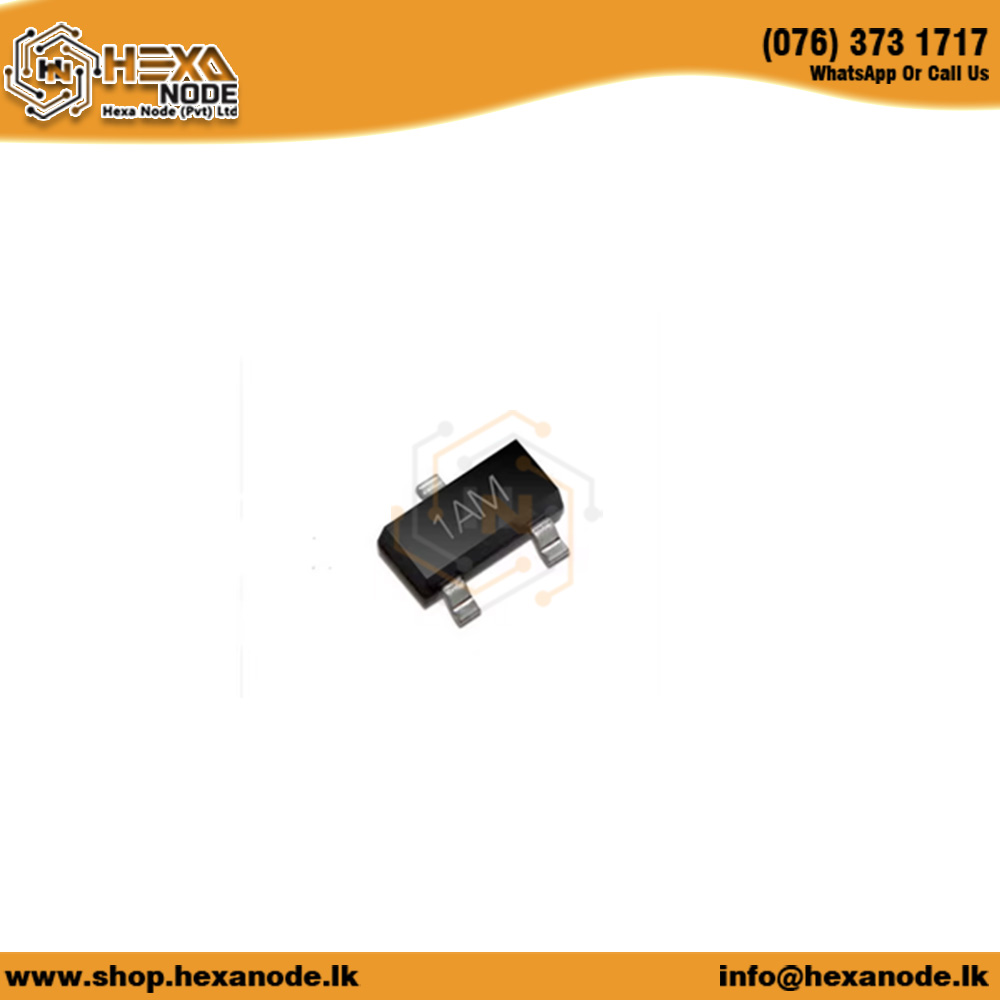

Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance!
