KTA1504 ASY / ASG SOT-23 PNP-50V-150mA Transistor

Product Description: KTA1504 ASY/ASG SOT23 PNP-50V-150mA Transistor

The KTA1504 is a PNP transistor housed in a compact SOT-23 package, designed for low to medium power applications. This transistor is rated for a maximum voltage of 50V and a current of up to 150mA, making it ideal for use in signal amplification, switching circuits, and low-power applications. The KTA1504’s small size allows it to be used in space-constrained designs, while its high efficiency and reliable performance make it suitable for use in consumer electronics, automotive, and industrial circuits. With its low saturation voltage and high gain, the KTA1504 offers excellent performance in a variety of applications that require efficient and stable PNP transistor operation.

Features:

• PNP Transistor: Designed for use as a PNP transistor, ideal for switching and amplification applications where negative voltage control is needed.
• 50V Collector-Emitter Voltage: Rated for a maximum voltage of 50V, allowing it to be used in a variety of medium-voltage applications.
• 150mA Collector Current: Can handle up to 150mA of continuous collector current, making it suitable for low to medium-power circuits.
• Compact SOT-23 Package: Housed in a space-saving SOT-23 package, ideal for use in compact and portable electronics where board space is limited.
• Low Saturation Voltage: Features a low saturation voltage (V_CE(sat)), ensuring high efficiency and reduced power loss during operation.
• High Current Gain: Provides a high current gain (hFE), enabling efficient amplification in analog and digital circuits.
• Fast Switching Speed: Offers fast switching characteristics, making it suitable for high-speed applications such as signal processing or high-frequency switching.
• Thermal Stability: Offers good thermal performance, ensuring reliability under varying operating conditions.

Applications:

• Signal Amplification: Ideal for use in analog amplification circuits, including audio, RF, and other low-power amplification applications.
• Switching Circuits: Used in switching applications where a low-power transistor is needed to control the flow of current.
• Consumer Electronics: Commonly used in small consumer electronics such as mobile devices, remote controls, and other portable electronics.
• Automotive Electronics: Suitable for automotive applications where low to medium voltage switching is required, such as in light control and sensor circuits.
• Battery-Powered Devices: Its low power consumption makes the KTA1504 ideal for use in battery-powered systems where energy efficiency is crucial.
• Industrial Control Systems: Can be used in industrial systems where compact, low-voltage transistors are needed for switching or amplification tasks.
• Signal Processing: Used in circuits where fast switching and low-power operation are required for processing signals in communication equipment.

Package Included: 1 x KTA1504 ASY/ASG SOT23 PNP-50V-150mA Transistor

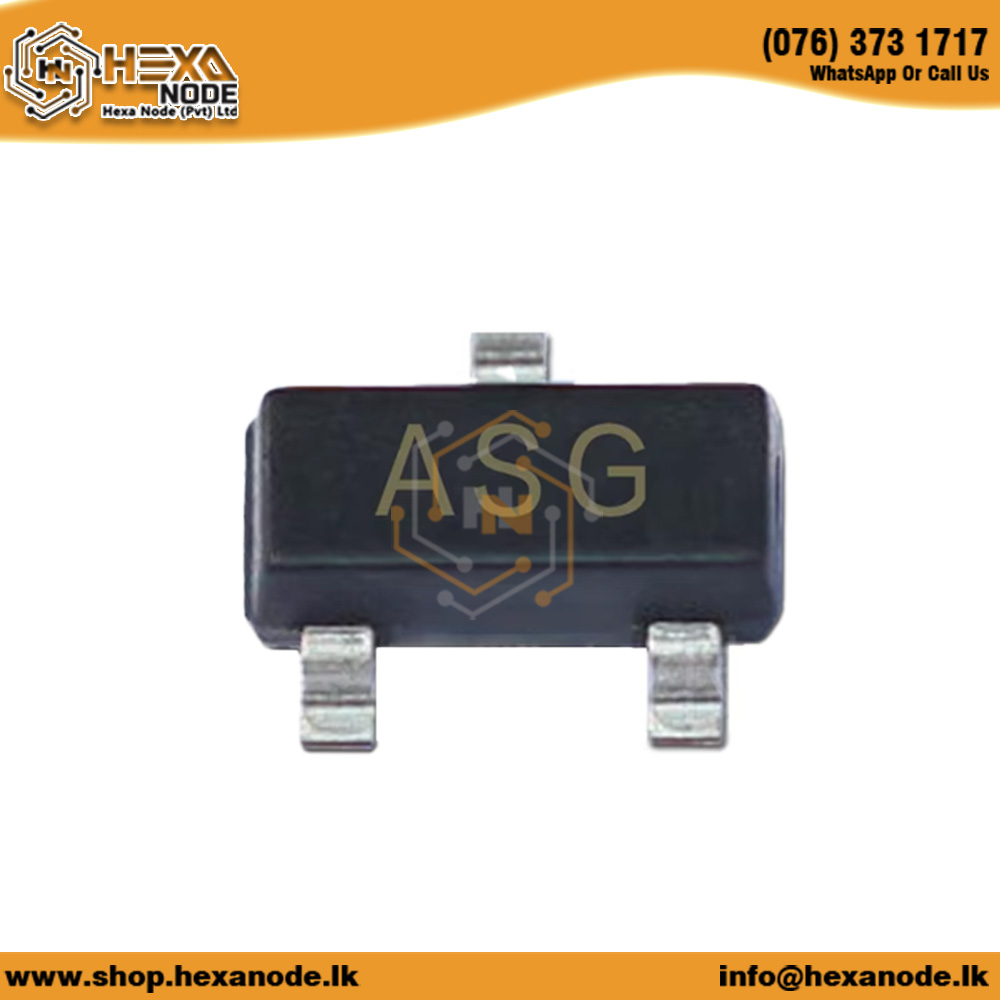

Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance.
