CD4543 DIP BCD To 7-Segment Latch/Decoder/Driver with Phase Input

Product Description: CD4543 DIP BCD To 7-Segment Latch/Decoder/Driver with Phase Input

The CD4543 DIP BCD To 7-Segment Latch/Decoder/Driver with Phase Input is a CMOS-based integrated circuit designed to convert binary-coded decimal (BCD) inputs into a 7-segment display output. This versatile device can be used to control 7-segment LEDs or LCD displays in applications requiring numeric display functions, such as digital clocks, counters, and displays for embedded systems.

The CD4543 includes a BCD to 7-segment decoder, a latch for holding the BCD input, and a driver to drive the 7-segment display. The phase input allows the user to control the latch and data output timing, enabling synchronous and asynchronous display operations. The output is compatible with both common cathode and common anode displays, making it highly adaptable for a wide variety of applications.

The BCD inputs (0–9) are decoded into the corresponding segments of the 7-segment display, allowing the display to show digits from 0 to 9. The integrated latch holds the display value, ensuring the display is stable during updates. The driver circuit ensures that sufficient current is supplied to the display for bright and clear visual output.

Operating within a wide voltage range of 3V to 18V, the CD4543 is ideal for both low-voltage and standard logic systems. Built using CMOS technology, the IC provides low power consumption, making it a great choice for battery-powered devices, embedded systems, and digital display projects.

Key Features:

• BCD to 7-Segment Decoder: Converts BCD input (0-9) into a corresponding 7-segment display output for numeric displays.
• Latch and Driver: Integrated latch and driver circuits hold the decoded value and drive the display with sufficient current.
• Phase Input: The phase input allows control over the latch operation, enabling synchronous or asynchronous data timing for accurate display updates.
• Wide Voltage Range: Operates within a 3V to 18V voltage range, ensuring compatibility with both low-voltage and standard logic systems.
• Common Anode/ Cathode Compatibility: Can drive both common cathode and common anode displays, providing flexibility in display types.
• Low Power Consumption: Built using CMOS technology, the IC offers low power consumption, ideal for energy-efficient applications.
• DIP-16 Package: The DIP-16 package is easy to integrate into breadboards, PCBs, and prototype systems for fast development.

Applications:

• Digital Displays: The CD4543 is widely used in digital displays such as clocks, counters, thermometers, and voltage meters to show numeric values on 7-segment displays.
• Embedded Systems: In embedded systems, the BCD to 7-segment decoder/driver is used to display numerical data such as sensor readings, status indicators, and user interface feedback.
• Alphanumeric Displays: It can drive alphanumeric displays when combined with additional decoding circuits, making it suitable for signage systems and alphanumeric display panels.
• Industrial and Consumer Electronics: Used in industrial controllers, gauges, instrumentation, and consumer electronics where numerical values need to be clearly displayed in real time.
• Counters and Timers: Perfect for counting applications in digital counters and timers, where the BCD to 7-segment conversion displays numbers from 0 to 9 for user feedback.
• LED Display Control: Used in controlling 7-segment LED displays in a range of applications, from clocks to thermometers to meter readouts.
• Frequency Counters: Can be used in frequency counters to display the number of pulses or frequency on a 7-segment display.
• Microcontroller Interface: Ideal for interfacing with microcontrollers or digital systems to provide numeric output display capabilities for user interface or measurement systems.

Package Included:

1 x CD4543 DIP BCD To 7-Segment Latch/Decoder/Driver with Phase Input

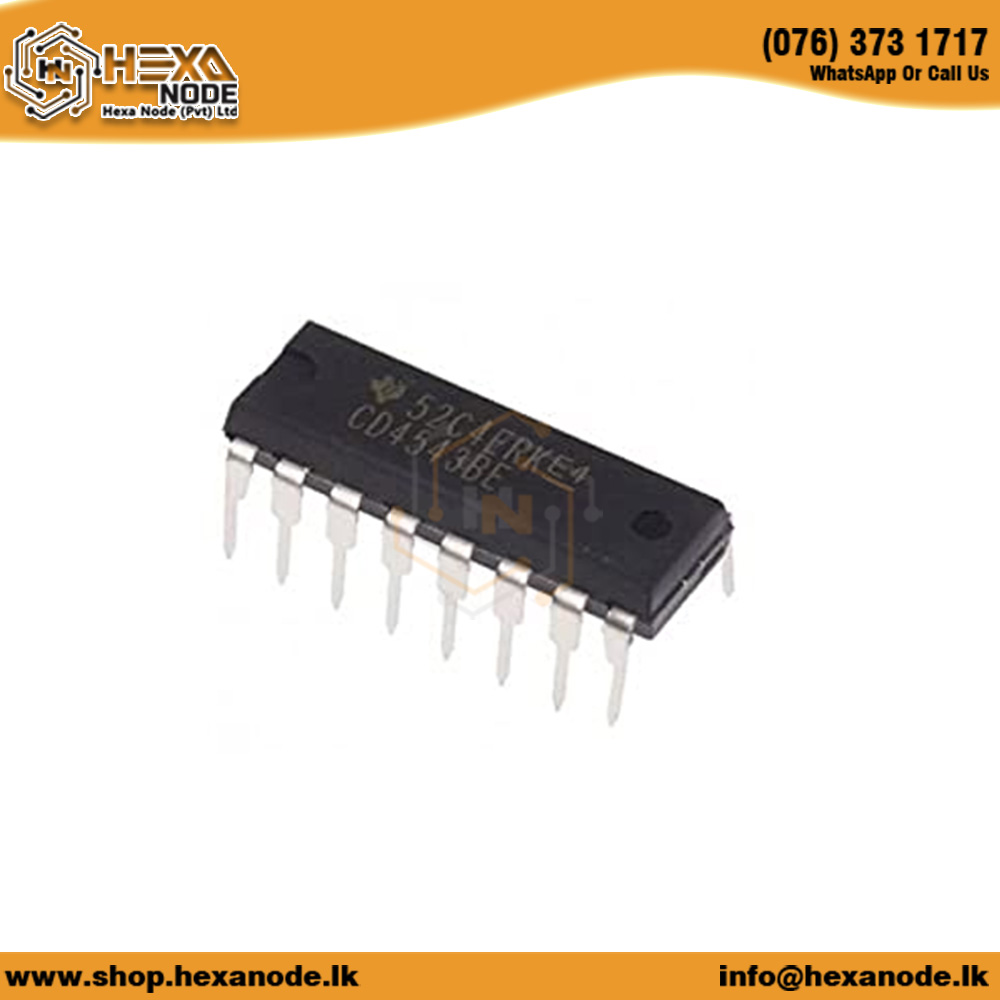

Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance.
