BFR93A R2W SOT-23 12V 35mA NPN Transistor

Product Description: BFR93A R2W SOT23 12V 35mA NPN Transistor

The BFR93A is a high-performance NPN transistor designed for low-power amplification and switching in compact and space-constrained electronic circuits. Packaged in the widely used SOT-23 form factor, this NPN transistor is ideal for applications requiring low current handling and moderate voltage operation. With a collector-emitter voltage rating of 12V and a collector current rating of 35mA, the BFR93A is well-suited for signal amplification and low-power switching tasks in consumer electronics, radio-frequency (RF) circuits, sensors, and other low-voltage systems.

This transistor offers a high current gain (h_FE), ensuring efficient amplification with minimal distortion in analog and signal processing circuits. Its compact size and low saturation voltage (around 0.3V) make it suitable for battery-powered devices and compact designs where small footprint and low power consumption are essential.

The BFR93A is also RoHS compliant, meeting environmental standards by being free from hazardous materials such as lead, mercury, and cadmium, making it safe for use in modern electronics.

Key Features:

• NPN Configuration: The BFR93A is an NPN transistor, meaning it is designed to conduct when a positive voltage is applied to the base, making it suitable for low-power switching and signal amplification in low-voltage circuits.
• Collector-Emitter Voltage (V_CEO): Rated for 12V, the BFR93A is ideal for use in low-voltage circuits, ensuring safe and efficient operation within moderate voltage environments.
• Collector Current (I_C): The transistor can handle a collector current of up to 35mA, making it suitable for low-current switching and signal amplification in small-scale circuits.
• Low Saturation Voltage (V_CE(sat)): The BFR93A features a low saturation voltage (typically 0.3V), reducing energy loss and improving the efficiency of switching operations.
• High Current Gain (h_FE): With a current gain ranging from 100 to 250, the BFR93A provides high-efficiency signal amplification with minimal distortion, making it ideal for audio circuits, RF circuits, and other signal processing applications.
• Compact SOT-23 Package: The SOT-23 package provides a small footprint, making the BFR93A perfect for surface-mount technology (SMT) and compact electronic designs.
• RoHS Compliant: The BFR93A is RoHS compliant, ensuring that it is free from hazardous materials and safe for use in electronics designed to meet environmental and health standards.

Applications:

• Signal Amplification: The BFR93A is ideal for low-power audio amplifiers, pre-amplifiers, and RF amplifiers, where high current gain and low power consumption are required for efficient and distortion-free signal amplification.
• Switching Circuits: The BFR93A can be used in low-power switching circuits, such as relay drivers, logic circuits, PWM controllers, and digital switches, where it provides efficient switching with low power loss.
• Low-Voltage Circuits: The BFR93A is well-suited for use in battery-powered devices and low-voltage electronics, such as sensors, portable gadgets, and handheld electronics, offering reliable operation with minimal power drain.
• Radio Frequency (RF) Circuits: With its high current gain and low noise characteristics, the BFR93A is ideal for use in RF signal amplification circuits, such as oscillators, amplifiers, and frequency modulation systems.
• Pulse Circuits: The BFR93A is effective in pulse circuits and timing circuits, where precise switching and fast response times are essential for generating or controlling timing signals and oscillations.
• Sensor Circuits: The BFR93A can be used in sensor circuits where it amplifies weak signals from sensors for further processing or signal transmission.

The BFR93A offers a compact size, high current gain, and low saturation voltage, making it a reliable choice for low-power amplification, signal switching, and compact designs in modern electronics.

Package Included: 1 x BFR93A R2W SOT23 12V 35mA NPN Transistor

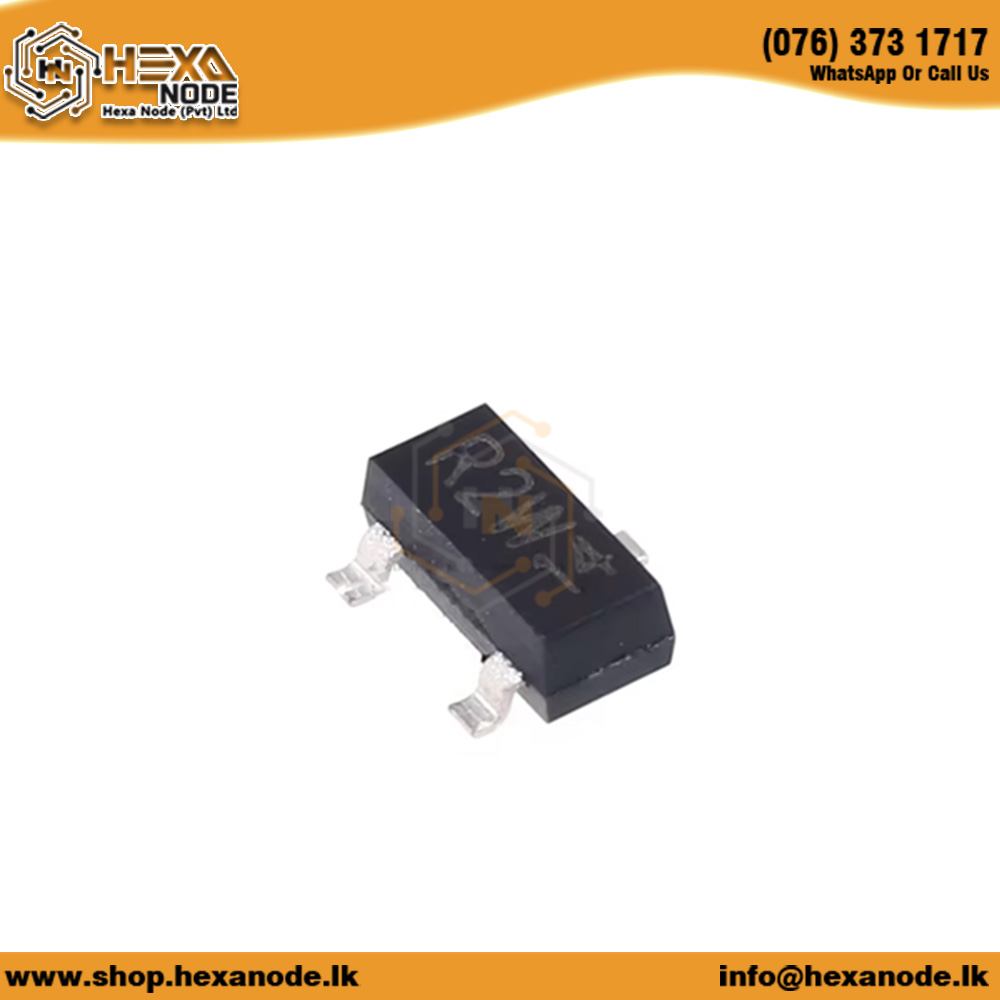

Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance!
