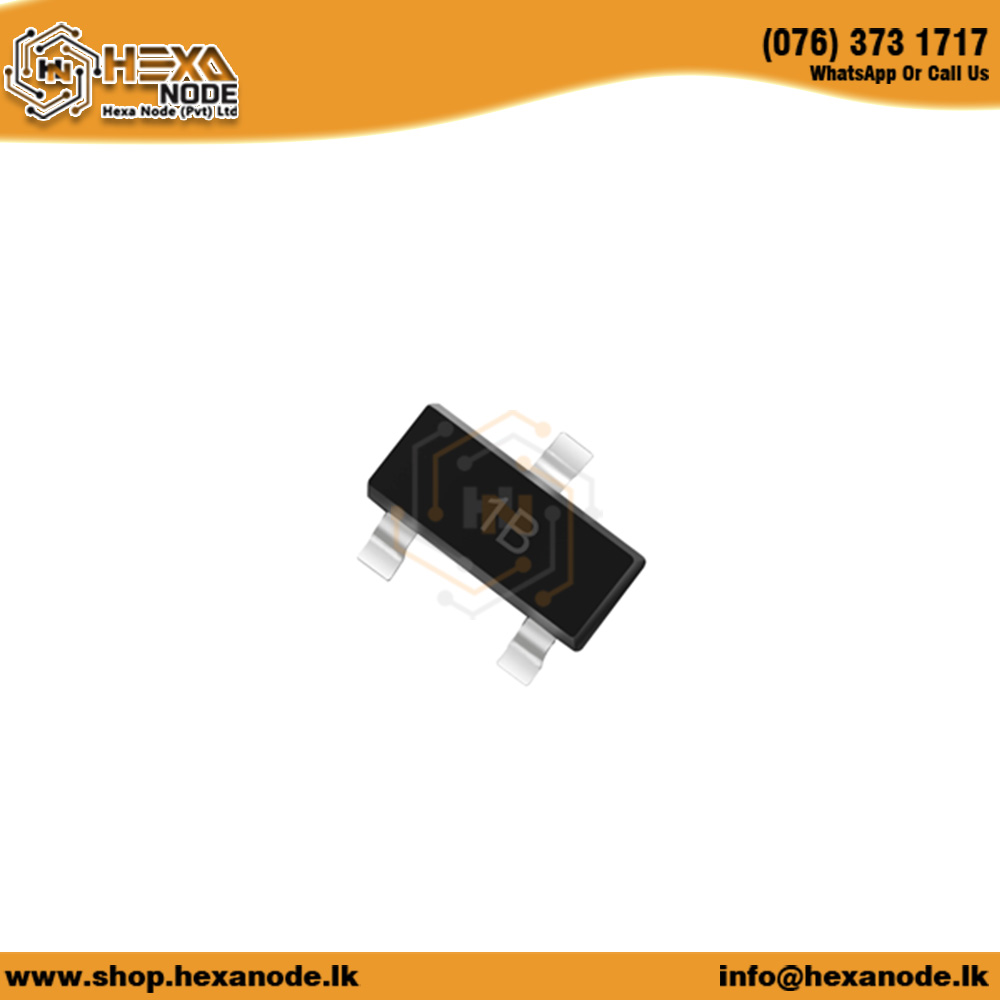

BC846B 1B SOT-23 65V 100mA NPN Transistor

Product Description: BC846B 1B SOT23 65V 100mA NPN Transistor

The BC846B is a high-performance NPN transistor designed for low-power amplification and switching applications in compact electronic circuits. Housed in a space-efficient SOT-23 package, the BC846B features a collector-emitter voltage rating of 65V and a collector current rating of 100mA, making it ideal for use in low-voltage, low-current applications where space is at a premium.

With a low saturation voltage (typically 0.3V), the BC846B provides excellent switching efficiency and signal integrity in analog signal processing, digital circuits, and power management systems. It also offers high current gain (h_FE), typically ranging from 110 to 800, ensuring reliable signal amplification in audio circuits, transistor switch circuits, and pre-amplifiers.

The BC846B is an NPN transistor that operates efficiently in a variety of applications requiring low power and minimal heat generation. Its SOT-23 package allows for surface-mount integration in compact PCBs for modern consumer electronics, sensors, and portable devices.

Key Features:

• NPN Configuration: The BC846B is an NPN transistor, meaning it conducts current from the collector to the emitter when a positive base current is applied. It is ideal for low-side switching, signal amplification, and analog circuit applications.
• Collector-Emitter Voltage (V_CEO): The BC846B is rated for a maximum collector-emitter voltage of 65V, making it suitable for moderate-voltage low-power applications.
• Collector Current (I_C): Capable of handling up to 100mA of continuous current, making it suitable for low-current signal processing and switching circuits.
• Low Saturation Voltage (V_CE(sat)): The BC846B has a low saturation voltage of approximately 0.3V, minimizing power dissipation during switching and ensuring efficient operation.
• High Current Gain (h_FE): The transistor features high current gain, typically in the range of 110 to 800, enabling reliable and low-distortion signal amplification in audio circuits, amplifiers, and radio-frequency applications.
• Compact SOT-23 Package: The SOT-23 package allows for space-efficient integration into surface-mount technology (SMT) circuits, making it ideal for high-density and portable designs.
• RoHS Compliant: The BC846B is RoHS compliant, ensuring it meets environmental regulations and is free from hazardous substances such as lead and mercury.

Applications:

• Signal Amplification: The BC846B is commonly used for low-power audio amplification, pre-amplifiers, radio frequency (RF) amplifiers, and other analog signal processing applications where high current gain and low power consumption are required.
• Switching Circuits: Ideal for low-side switching applications, such as digital logic circuits, relay drivers, and PWM control circuits where the transistor can handle moderate currents in low-voltage circuits.
• Voltage Regulation: Used in low-dropout regulators (LDOs) and voltage regulation circuits to provide stable output voltages for sensitive electronics in battery-operated devices and portable electronics.
• Pulse Circuits: Suitable for use in PWM circuits, oscillators, timing circuits, and frequency modulation systems, where reliable switching performance is essential for generating pulses and controlling power delivery.
• Signal Switching: The BC846B can be used in switching applications that require low-current and low-power operation, such as light sensors, temperature sensors, logic gates, and other control circuits.
• Battery-Powered Devices: Perfect for use in battery-powered devices such as wireless sensors, portable electronics, and handheld gadgets, offering low power consumption and efficient operation.

The BC846B NPN transistor is a reliable and cost-effective solution for low-power switching and amplification in a variety of compact and high-density applications. Its low saturation voltage, high current gain, and small SOT-23 package make it ideal for consumer electronics, signal processing, and portable devices.

Package Included: 1 x BC846B 1B SOT23 65V 100mA NPN Transistor

Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance!
