74LS76 / 7476 DIP Dual J-K Flip-Flop with Preset And Clear

Product Description: 74LS76 DIP Dual J-K Flip-Flop with Preset and Clear

The 74LS76 is a Dual J-K Flip-Flop with Preset and Clear features, designed to operate as a high-speed logic element in digital systems. This integrated circuit (IC) offers two independent J-K flip-flops with asynchronous preset and clear inputs for flexible control of state changes. Operating within the Low Power Schottky (LS) family, the 74LS76 ensures rapid switching and low power consumption, making it an excellent choice for high-speed memory storage and clocked logic applications. The flip-flops are edge-triggered, meaning they change states based on clock pulses, providing reliable and consistent behavior in sequential logic circuits. The device comes in a 14-pin Dual In-line Package (DIP) for easy integration into both prototyping and production circuits.

Features:

• Dual J-K Flip-Flops: Contains two independent flip-flops, each with a J (Set), K (Reset), and clock input, allowing versatile and reliable binary storage and state change.
• Asynchronous Preset and Clear: Allows immediate control over the flip-flop state, enabling quick reset (Clear) or setting (Preset) without waiting for a clock pulse.
• Edge-triggered operation: Flip-flops are triggered by the rising edge of the clock, providing precise synchronization in sequential circuits.
• Low Power Schottky (LS) Series: Designed for fast operation with low power consumption, ideal for modern digital systems.
• 14-pin DIP package: Convenient DIP form factor that ensures compatibility with standard circuit board layouts and socket connections.
• Reliable performance: Built to meet the rigorous demands of digital logic applications, delivering long-lasting and stable performance.

Applications:

• Digital memory storage: Can be used to store binary information in various logic circuits and systems.
• Sequential logic circuits: Commonly utilized in counter circuits, shift registers, and other sequential systems that require state changes based on clock input.
• Timing and control systems: Ideal for use in timing and control applications where precise state changes are needed based on clock pulses.
• Signal processing: Can be used for signal conditioning and synchronization in digital systems that require stable memory elements.
• Embedded systems: Frequently found in embedded digital systems where reliable state retention is necessary for control and data storage.

Package Included:
1 x 74LS76 DIP Dual J-K Flip-Flop with Preset and Clear

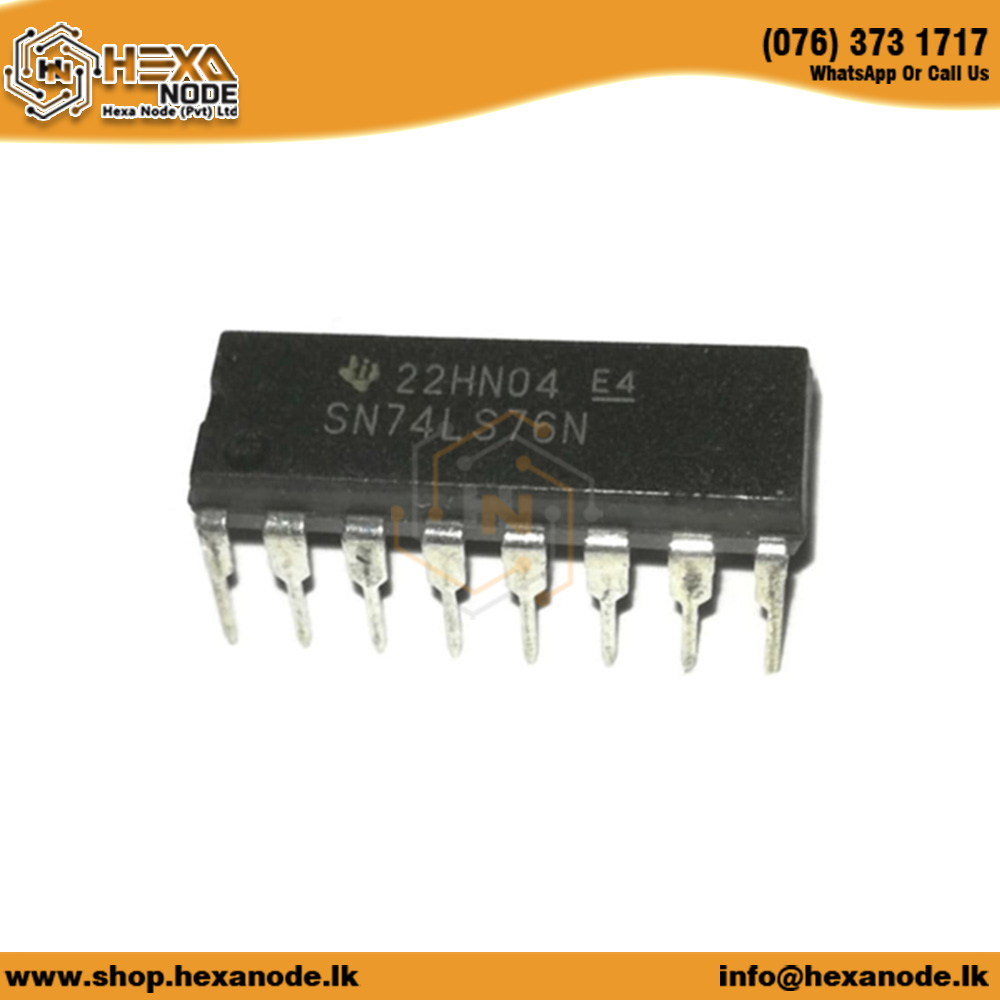

Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance.
