74LS193 / 74193 DIP Synchronous 4-Bit Binary Counter with Dual Clock

Product Description: 74LS193 DIP Synchronous 4-Bit Binary Counter with Dual Clock

The 74LS193 is a 4-bit binary counter IC designed to provide synchronized counting with dual clock inputs, offering increased flexibility in digital counting applications. It is a synchronous counter, meaning that all of its flip-flops are clocked simultaneously, ensuring precise timing and reducing timing uncertainties between stages. This IC features an asynchronous reset for clearing the count and can be configured to count in both up and down directions, controlled via separate count-up and count-down inputs. The 74LS193 is a part of the Low Power Schottky (LS) logic family, providing fast switching speeds and low power consumption, making it suitable for high-speed and energy-efficient digital counting applications.

The dual clock configuration allows for more versatile operation, such as enabling the counter to be clocked by different signals or managing timing more effectively in complex systems. This counter is ideal for use in digital systems requiring sequential counting, time delay generation, or frequency division. It operates within a supply voltage range of 4.5V to 5.5V and comes in a standard 14-pin DIP package, which makes it easy to integrate into breadboards or circuit boards.

Features:

• 4-Bit Binary Counter: The 74LS193 is capable of counting from 0 to 15 (binary 0000 to 1111) and is widely used in counting applications such as timers, clocks, and frequency division.
• Synchronous Operation: All flip-flops are clocked simultaneously, ensuring synchronized counting and precise timing.
• Dual Clock Inputs (Clock A and Clock B): The IC supports dual clock inputs for increased flexibility in timing control, allowing for complex timing and sequencing operations.
• Up/Down Control: The 74LS193 can count both up and down, controlled by the up/down input, making it useful for both incrementing and decrementing counters.
• Asynchronous Reset (CLR): The reset pin clears the count to zero asynchronously, enabling immediate resetting of the counter.
• Low Power Schottky (LS) Technology: Built using LS technology, this counter offers low power consumption without sacrificing speed.
• Wide Voltage Range: Operates at a voltage range of 4.5V to 5.5V, making it compatible with most TTL and CMOS-based logic systems.
• 14-Pin DIP Package: The IC comes in a standard 14-pin Dual In-line Package (DIP), which is easy to integrate into most digital systems.

Applications:

• Digital Counters: Ideal for applications requiring binary counting, such as event counters, frequency dividers, and timekeepers in clocks and timers.
• Frequency Division: Used in applications like clock dividers or counters for generating lower-frequency signals from a higher-frequency input.
• Control Systems: Common in control systems where sequential counting is needed to trigger events or manage operations over time.
• Digital Circuit Design: Found in digital logic circuits, such as state machines or counters, where synchronous counting is necessary.
• Data Processing Systems: Can be used in microprocessor-based systems to track events, cycles, or addresses in memory systems.
• Test and Measurement Equipment: Used in test equipment and oscilloscopes to count events or time intervals with precision.

Package Included:
1 x 74LS193 DIP Synchronous 4-Bit Binary Counter with Dual Clock

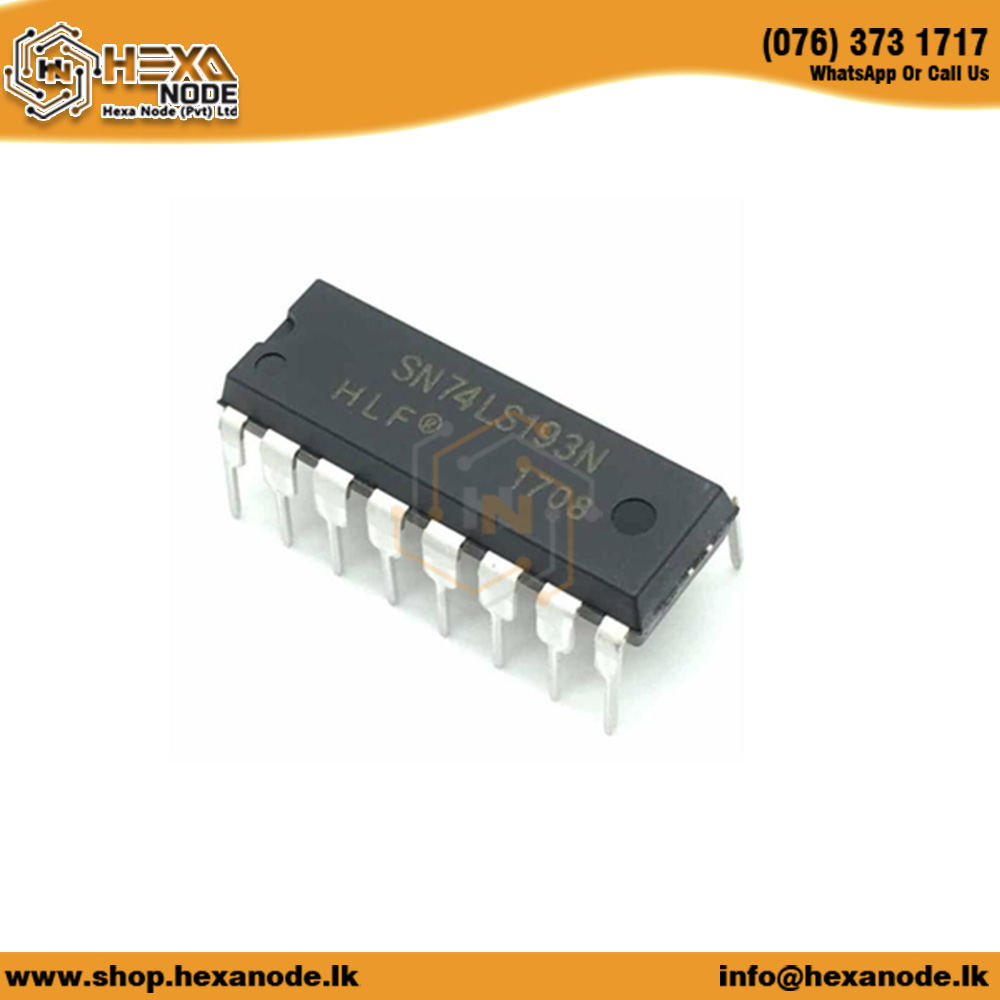

Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance.
