74LS151 / 74151 DIP 8-Lin To 1-Lin Data Selector/Multiplexer

Product Description: 74LS151 DIP 8-Line to 1-Line Data Selector/Multiplexer

The 74LS151 is an 8-line to 1-line data selector/multiplexer IC, designed to select one of eight input lines and pass it through to a single output based on the values of three selection inputs. This multiplexer is part of the Low Power Schottky (LS) logic family, which ensures fast switching speeds and low power consumption, making it ideal for high-speed data routing and signal multiplexing applications. The 74LS151 operates as a data selector, allowing for efficient routing of data from multiple sources to a single destination, useful in systems requiring flexible data flow management.

This IC provides an efficient way to reduce the number of connections between devices or systems, enabling a single microcontroller or processor to control multiple data sources. It supports both logic high and low signal levels, making it versatile for a range of digital applications. The 74LS151 features active-low output enable and allows the output to be tri-stated, which is useful for bus-oriented applications where multiple ICs might share a common data line.

Features:

• 8-to-1 Multiplexer: Selects one of eight input lines and outputs it based on the combination of three selection inputs (S0, S1, S2).
• Active-Low Output Enable (G): The output can be tri-stated or driven low when the output enable (G) is active-low, making it suitable for bus-sharing applications.
• Low Power Schottky (LS) Technology: Offers high-speed performance with low power consumption, ensuring energy-efficient operation even in complex circuits.
• Fast Switching Speeds: With a typical propagation delay of 11ns, the IC ensures quick and accurate data selection in time-sensitive applications.
• Wide Operating Voltage Range: Operates between 4.5V to 5.5V, ensuring compatibility with a wide range of digital systems.
• 14-pin DIP Package: Comes in a standard 14-pin Dual In-line Package (DIP), making it easy to integrate into prototypes or circuit boards.
• TTL Logic: Designed using TTL technology, ensuring reliable and efficient performance for logic operations in digital circuits.

Applications:

• Data Routing and Multiplexing: Ideal for routing data from multiple sources to a single destination, commonly used in digital systems, communication modules, and microcontroller-based applications.
• Signal Selection: Used in systems that require the selection of different signal sources, such as audio, video, or sensor data.
• Memory Address Decoding: Can be used in memory systems to select one of eight data lines for accessing different memory addresses or data registers.
• Control Systems: Applied in control systems where multiple devices need to be controlled via a single data line, such as in automation or industrial control systems.
• Bus-Oriented Applications: The tri-state output feature makes it perfect for bus systems where multiple devices share the same data bus.

Package Included:
1 x 74LS151 DIP 8-Line to 1-Line Data Selector/Multiplexer

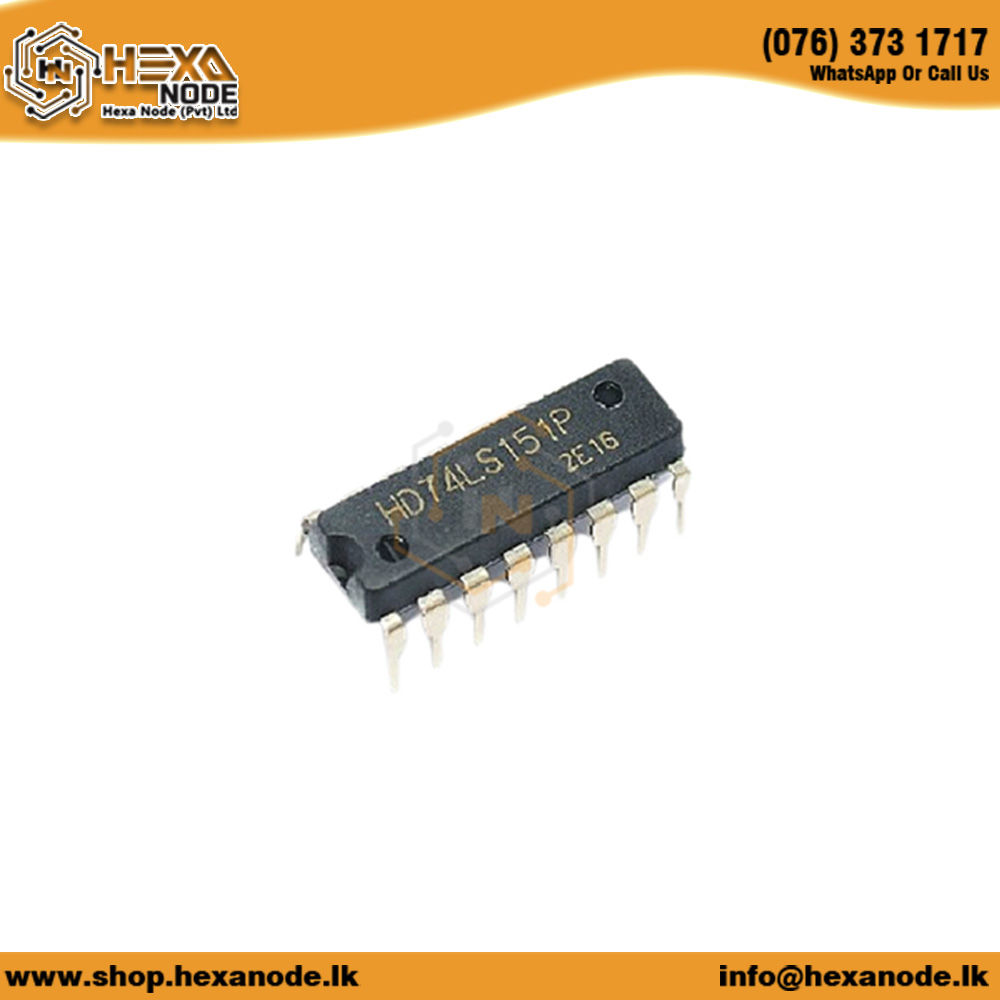

Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance.
