74HC595 / 74595 SOP 8-Bit Serial-Input/Serial Or Parallel-Output Shift Register with Latched 3 State Outputs

Product Description: 74HC595 SOP 8-Bit Serial-Input/Serial or Parallel-Output Shift Register with Latched 3-State Outputs

The 74HC595 is a high-speed 8-bit shift register IC with serial-input and parallel-output functionality, designed for use in digital electronics requiring efficient data storage and transfer. It features latched 3-state outputs, making it ideal for driving LEDs, controlling multiple devices, or expanding input/output capabilities with minimal use of microcontroller pins. Operating within the High-Speed CMOS (HC) logic family, the 74HC595 delivers fast, reliable performance with low power consumption, making it an excellent choice for systems that require both serial data input and parallel data output. This shift register is often used in applications like data bus expansion, digital displays, and serial communication systems.

Features:

• 8-bit shift register: Contains eight storage bits, allowing for serial data input with parallel data output, enabling easy expansion of I/O pins.
• Serial or parallel output: The outputs can be accessed either in parallel (direct access to all outputs) or serially (output shifted one bit at a time), providing flexible data transfer modes.
• Latched 3-state outputs: Each output is latched, ensuring data stability, and 3-state outputs allow for bus-sharing in applications with multiple ICs.
• Low power consumption: Operates with low power requirements, making it suitable for battery-powered systems or energy-efficient applications.
• High-speed CMOS technology: Offers fast operation and quick response times, typically with propagation delays around 8ns.
• Clock-controlled operation: The shift register is controlled by a clock signal, making it suitable for synchronous data transfer and timing-based applications.
• Versatile I/O expansion: Ideal for extending the number of output pins on microcontrollers or other systems with limited I/O resources.
• Wide operating voltage range: Compatible with a wide voltage range from 2V to 6V, making it flexible for different logic systems.

Applications:

• LED and Display Driving: Commonly used for driving 7-segment displays, LED arrays, and other visual indicators, where multiple outputs are needed from limited microcontroller pins.
• Data Bus Expansion: Used to expand the number of digital outputs or inputs in a system, particularly useful in communication or automation systems.
• Digital Signal Processing: Ideal for processing and routing digital signals where data needs to be shifted in or out of a system, such as in multiplexers and demultiplexers.
• Microcontroller I/O Expansion: Frequently utilized in embedded systems to expand the number of output pins from microcontrollers with limited GPIOs.
• Control Systems: Can be used in industrial control systems to drive relays, motors, and other actuators that require parallel control signals from a limited number of microcontroller pins.

Package Included:
1 x 74HC595 SOP 8-Bit Serial-Input/Serial or Parallel-Output Shift Register with Latched 3-State Outputs

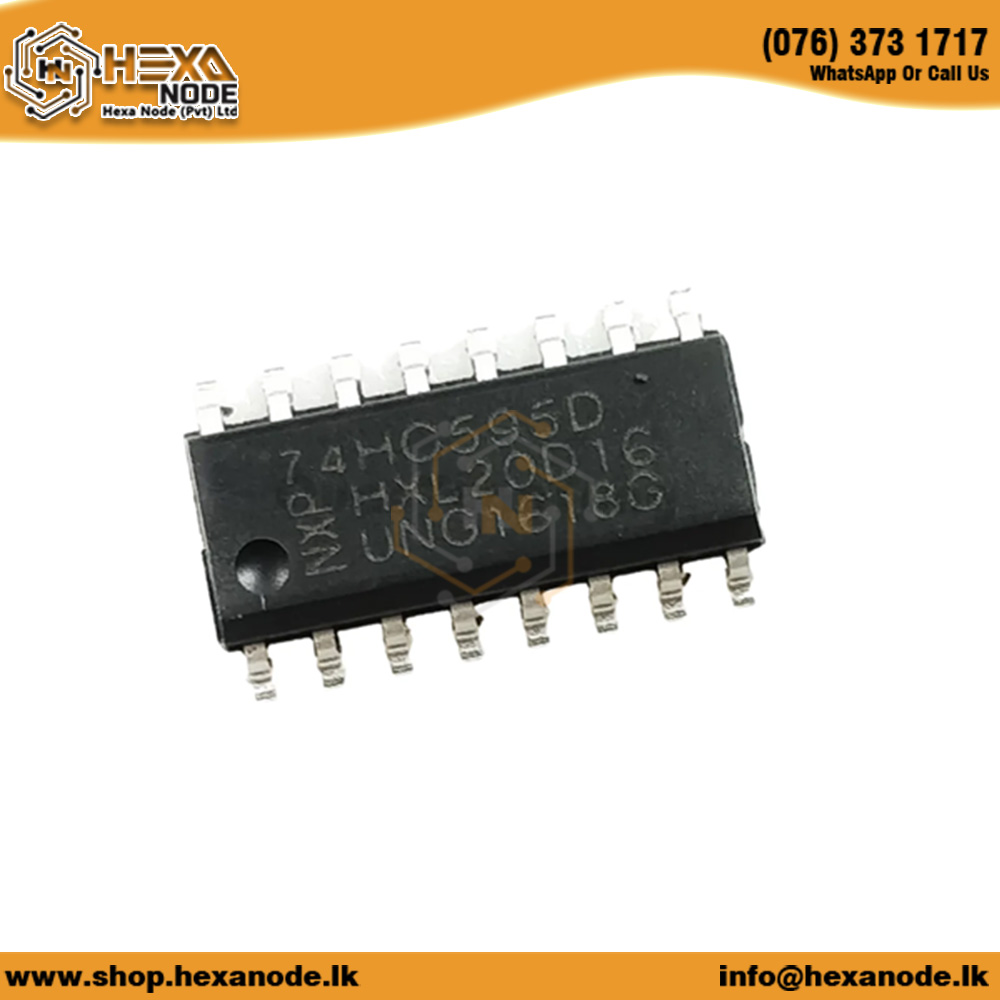

Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance.
