74HC04 / 7404 SOP Hex Inverter IC

Product Description: 74HC04 SOP Hex Inverter

The 74HC04 is a Hex Inverter IC that consists of six independent inverters in a single chip, packaged in a small-outline package (SOP). This device belongs to the High-Speed CMOS (HC) logic family, designed for low power consumption and high-speed performance. Each of the six inverters provides a digital signal output that is the logical inverse (NOT) of its input. With a low propagation delay and excellent noise immunity, the 74HC04 is perfect for digital logic applications requiring efficient signal inversion. Its compact SOP package ensures compatibility with surface-mount technology, making it ideal for space-constrained designs in modern electronics.

Features:

• Six Inverters: The 74HC04 features six independent inverters that perform logical NOT operations on digital signals.
• High-speed CMOS technology: Provides fast switching speeds with low power consumption, ideal for high-performance and low-power circuits.
• Low propagation delay: With typical propagation delays as low as 10ns, it ensures fast response times in digital circuits.
• Wide voltage range: The 74HC04 operates within a supply voltage range of 2V to 6V, making it suitable for both 3.3V and 5V logic systems.
• Small-outline package (SOP): The compact SOP-14 package offers a smaller footprint compared to traditional DIP packages, making it ideal for surface-mount circuit boards.
• Improved noise immunity: The CMOS technology ensures enhanced noise rejection, offering stable performance even in noisy digital environments.

Applications:

• Digital logic circuits: Used extensively for creating NOT gates or for inverting signals in digital logic systems.
• Signal inversion and shaping: Commonly applied in signal processing for waveform shaping or inversion in communication and control systems.
• Timing and clock circuits: Frequently used in clock signal generation or timing circuits where inversion of a signal is needed.
• Embedded systems: Well-suited for embedded system designs, where compact, low-power components are critical.
• Consumer electronics: Ideal for use in consumer electronics, such as microcontrollers, digital audio systems, and video processing equipment, where space and performance are key.

Package Included:
1 x 74HC04 SOP Hex Inverter

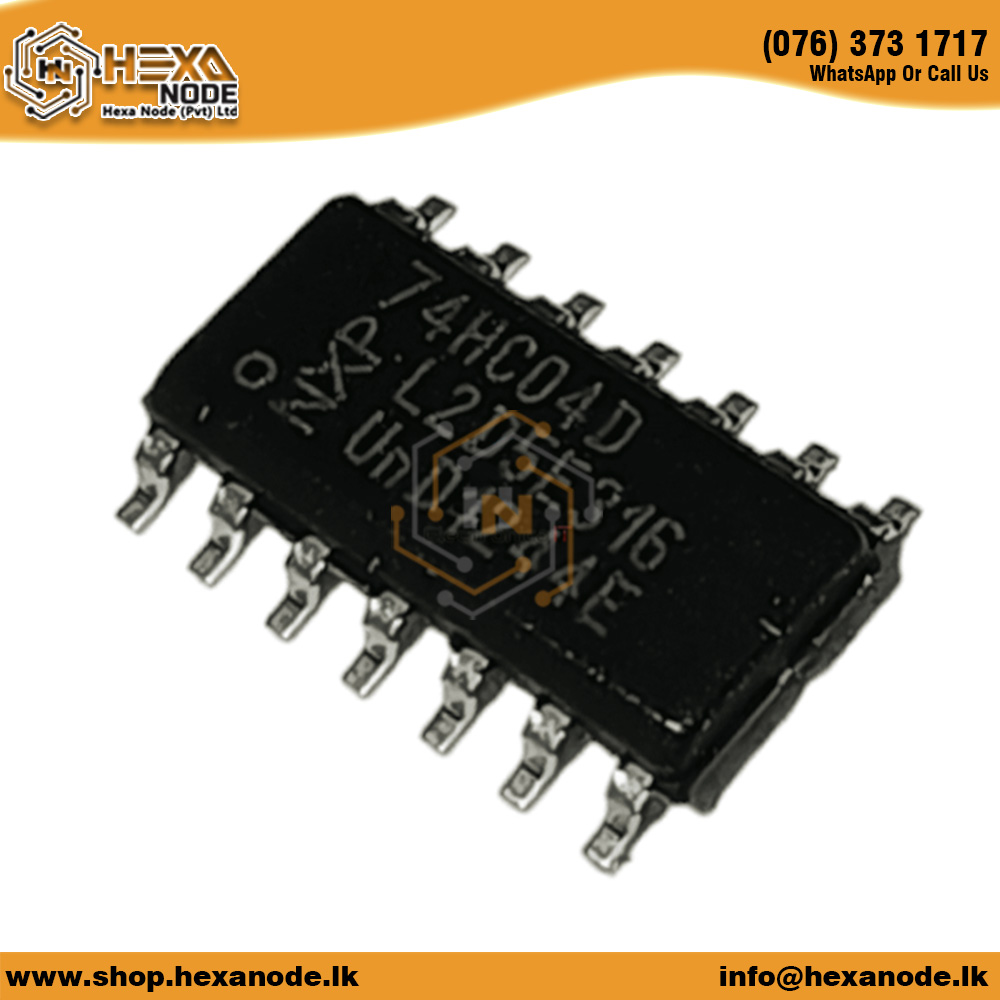

Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance.
