2SD1878 / D1878 TO-264 Silicon NPN Power Transistors

Product Description:D1878 TO264
The D1878 TO264 is a high-voltage NPN power transistor designed for various applications, particularly in high-speed switching and power amplification. This transistor is notable for its robust construction and ability to handle significant power levels, making it suitable for demanding electronic circuits, including those found in deflection systems and power supplies.

Features

• NPN Configuration: The D1878 is configured as an NPN transistor, ideal for high-power amplification and switching tasks.
• High Voltage Ratings:
  Maximum Collector-Emitter Voltage (VCE): 800V
  Maximum Collector-Base Voltage (VCB): 1500V
  Maximum Emitter-Base Voltage (VEB): 5V
• Collector Current Capability: Supports a maximum continuous collector current (IC) of 5A, providing versatility in circuit designs.
• Power Dissipation: Capable of dissipating up to 60W of power, ensuring efficient operation without excessive heat generation.
• High Switching Speed: Designed for fast switching applications with a transition frequency of approximately 100ns.
• Integrated Damper Diode: Features an on-chip damper diode to enhance performance in switching applications.

Application
The D1878 TO264 is utilized in various applications:

• Horizontal Deflection Circuits: Ideal for use in television and monitor deflection systems where high voltage and reliability are essential.
• Switching Power Supplies: Suitable for use in switch-mode power supplies (SMPS) due to its high voltage and current handling capabilities.
• Motor Control Circuits: Commonly used in motor drive applications that require reliable performance under load.
• General Purpose Electronics: Effective in a variety of general-purpose electronic circuits requiring robust performance.

Package Included:

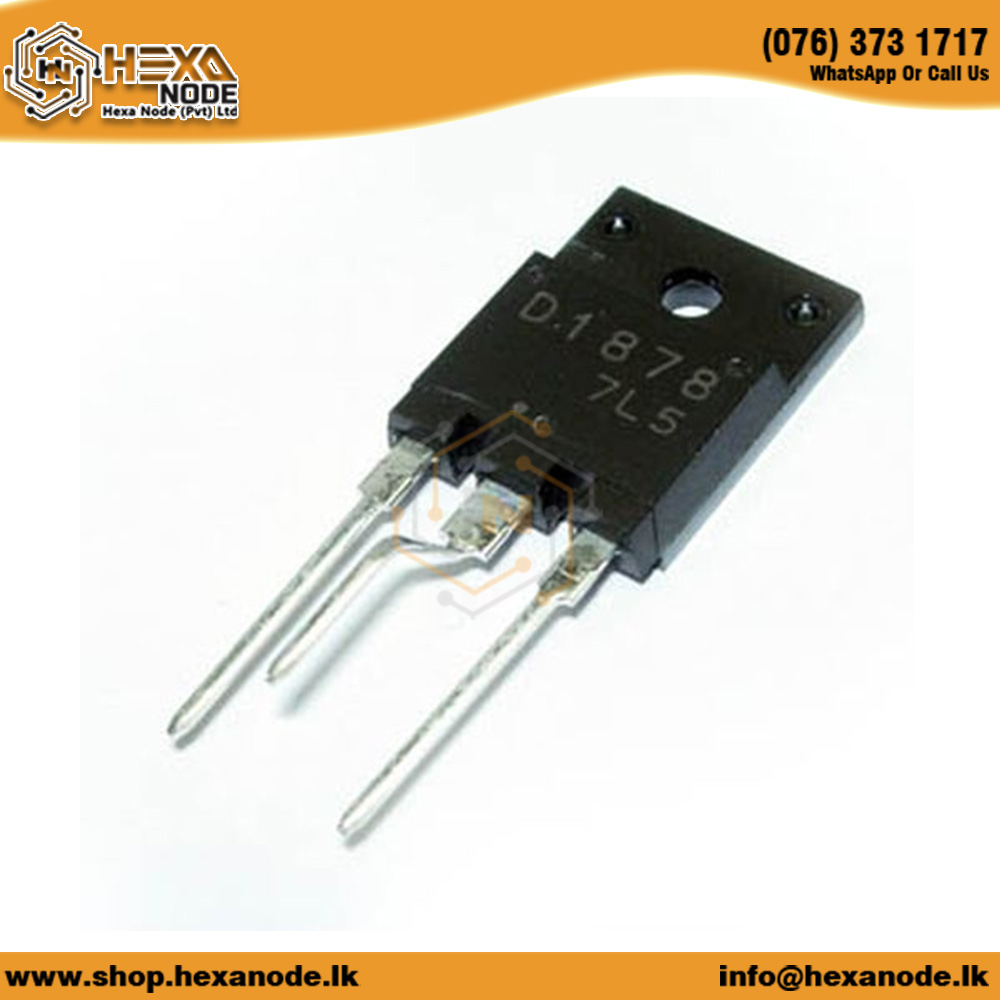

1 x D1878 TO264. Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance!
