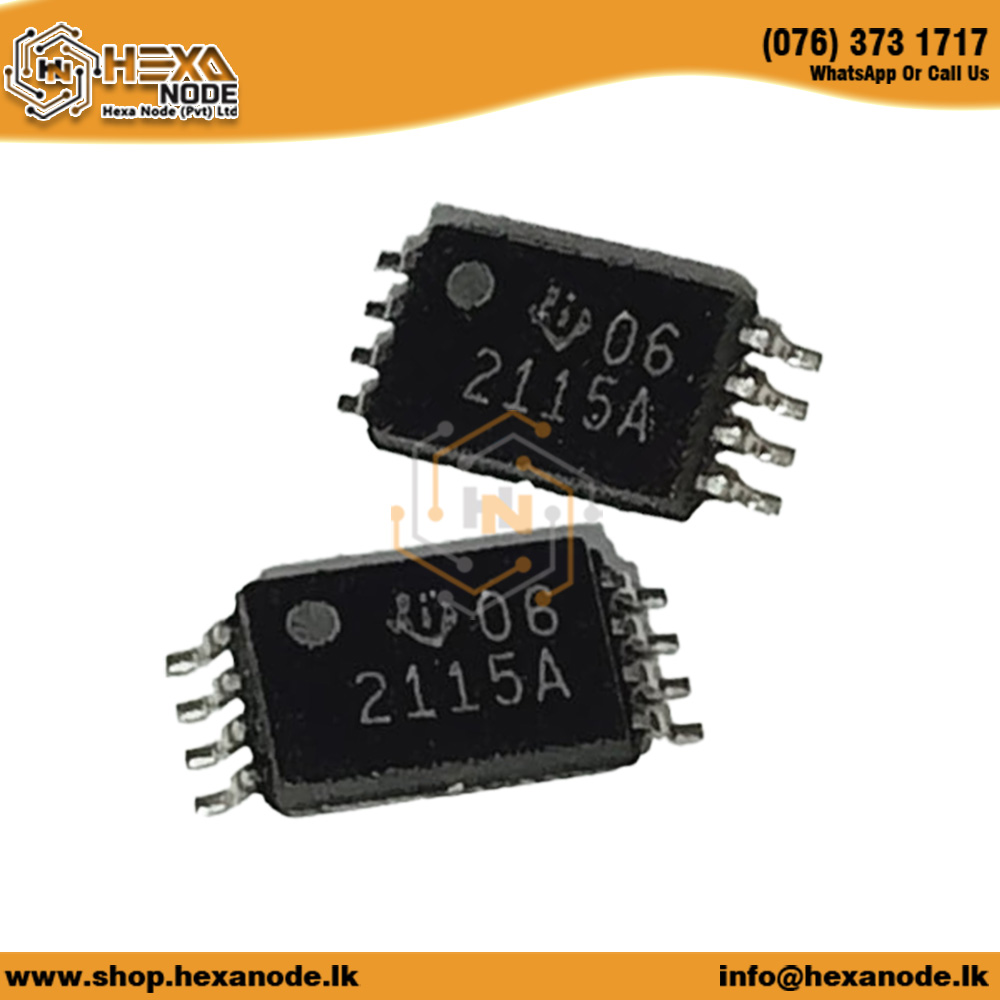

TPS2115APW TSSOP ORIGINAL Auto Switching Power MUX IC

Product Description: TPS2115APW TSSOP Auto Switching Power Mux Original

The TPS2115APW is a power multiplexer (mux) in a TSSOP-16 package, designed to automatically switch between two power sources to provide continuous power to a system. This device offers seamless power source selection and power path management, making it ideal for applications requiring uninterrupted power delivery, even when switching between two sources, such as from battery to USB or from an AC power adapter to battery backup. The TPS2115APW features an integrated current-limiting circuitry, thermal shutdown protection, and low on-resistance, ensuring efficient and reliable performance in power-sensitive designs.

Features:

• Automatic Power Source Switching: Automatically selects the appropriate power source (e.g., USB, battery, AC adapter) for continuous operation.
• Integrated Power Path Management: Manages the power path for switching between multiple power sources, providing seamless and uninterrupted power delivery.
• Current Limiting: Built-in current limiting protection ensures the system is protected against overcurrent situations, providing safe operation.
• Thermal Shutdown: Thermal protection feature prevents the device from overheating during operation, ensuring safe and reliable performance.
• Low On-Resistance: Low internal resistance ensures minimal voltage drop across the device, improving the overall efficiency of the power delivery system.
• Wide Input Voltage Range: Supports input voltage sources from 2.5V to 5.5V, making it versatile for various applications requiring power source switching.
• TSSOP-16 Package: Compact TSSOP-16 package provides a space-efficient solution for integration into small electronic systems.
• Low Quiescent Current: The device operates with low quiescent current, improving efficiency in battery-powered applications.
• High Efficiency: Offers high power conversion efficiency, making it suitable for low-power and energy-efficient designs.

Application:

• Portable Devices: Perfect for managing power sources in portable electronics, such as handheld devices, wearables, and mobile phones, ensuring smooth transition between battery and external power.
• Power Backup Systems: Ideal for uninterruptible power supplies (UPS) and backup power systems that require seamless switching between AC power and battery power.
• Battery-Powered Applications: Used in battery-powered devices where switching between charging and discharging modes is necessary without interruption.
• Consumer Electronics: Suitable for consumer electronics such as tablets, laptops, and personal media devices, where continuous power availability is crucial.
• Automotive: Can be used in automotive power systems where seamless switching between different power sources (such as the car battery and charging systems) is needed.
• Communication Equipment: Ideal for communication equipment that requires continuous power during source transitions, such as base stations and modems.
• IoT Devices: Perfect for IoT systems that require efficient power management for extended operational life and battery conservation.

Package Included:

1 x TPS2115APW TSSOP Auto Switching Power Mux Original
Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance.
