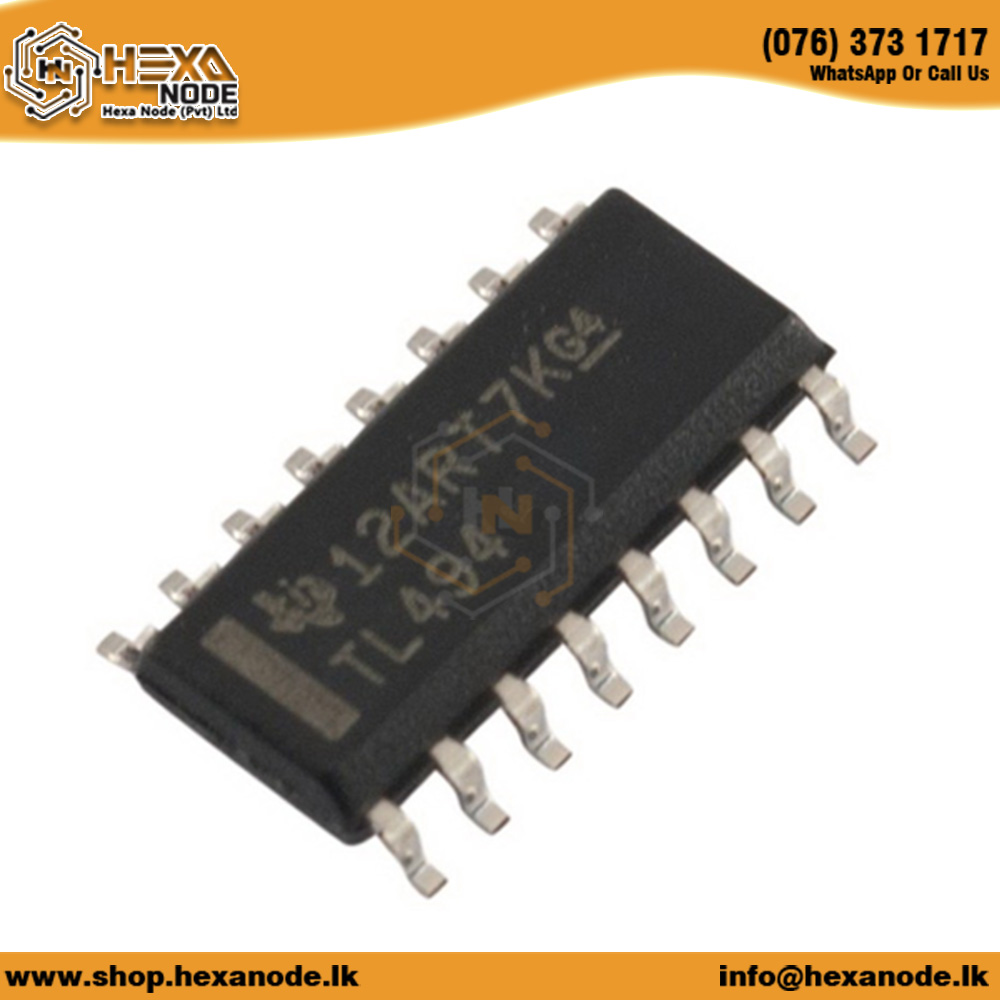

TL494 SOP 41V 250mA PWM Controller IC

The TL494 is a versatile pulse-width modulation (PWM) controller IC designed primarily for power-supply control applications. It is not specifically a 41V 250mA PWM controller IC as described, but rather operates within a supply voltage range of 7V to 40V and can handle output currents up to 200mA per output transistor. Here is a detailed overview of its features and applications:

Features:

• Comprehensive PWM Control Circuitry: Includes two error amplifiers, an on-chip adjustable oscillator, a dead-time control (DTC) comparator, a pulse-steering control flip-flop, and a 5V, 5%-precision regulator
• Adjustable Oscillator: Allows for flexible frequency control, which can be bypassed for external control
• Dead-Time Control: Provides a fixed offset for approximately 5% dead time, ensuring efficient switching
• Output Control: Supports both push-pull and single-ended output operations, with uncommitted output transistors capable of sourcing or sinking up to 200mA
• Operating Voltage Range: From 7V to 40V, making it suitable for various power supply configurations

Application:

The TL494 is ideal for:

• Power Supplies: Used in AC/DC, isolated, and non-isolated power supplies, including those with power factor correction (PFC)
• Desktop PCs and Servers: Commonly employed in power supplies for these systems
• Solar Micro-Inverters: Suitable for applications requiring efficient power conversion
• E-Bikes and Other Portable Devices: Used in power management systems for these devices

Package Included:

1 x TL494 SOP Pulse-Width Modulation Controller. Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance!
