TIP142T TO220 100V 10A NPN Darlington Transistor

Product Description: TIP142T TO220 100V 10A NPN Darlington Transistor

The TIP142T TO220 NPN Darlington Transistor is a high-performance power transistor designed for high-current switching and amplification applications. With a collector-emitter voltage rating of 100V and a maximum continuous collector current of 10A, the TIP142T can handle substantial power loads, making it suitable for a wide range of power electronics applications. The Darlington configuration of this transistor offers a high current gain, which allows for efficient amplification with minimal input base current. Its TO-220 package ensures effective thermal dissipation, allowing the TIP142T to operate reliably in high-power environments without overheating.

Key Features:

• Collector-Emitter Voltage (V_CEO): 100V, providing the TIP142T with the ability to manage moderate to high-voltage applications.
• Maximum Collector Current (I_C): 10A, offering significant current-handling capacity for demanding power switching and amplification tasks.
• High Current Gain (h_FE): The Darlington configuration offers very high current gain (typically 1000), allowing for efficient operation even with minimal base current.
• Low Saturation Voltage (V_CE(sat)): Features a low voltage drop when conducting, reducing power dissipation and improving the overall efficiency of the circuit.
• TO-220 Package: Designed for high-power applications, the TO-220 package ensures optimal heat dissipation and ease of mounting in various circuit designs.
• Built-in Base-Emitter Diodes: These diodes provide protection from voltage spikes caused by inductive load switching, enhancing the durability and longevity of the transistor.

Applications:

• Power Amplifiers: Ideal for use in audio and RF amplifiers, where high current gain and low distortion are critical for driving large speakers or other high-power loads.
• Motor Drivers: Suitable for controlling motors in various industrial, consumer electronics, and robotics applications that require high current switching.
• Solenoid Drivers: Can be used in controlling solenoids for automation systems, locking mechanisms, and electro-mechanical control applications.
• Switching Power Supplies: Perfect for use in the switching stages of power supplies, especially in DC-DC converters and SMPS systems, where reliable current switching and voltage regulation are required.
• Relay Drivers: Excellent for driving relays, enabling control of high-power circuits in industrial, automotive, and power distribution applications.
• Signal Amplification: Useful for low-power audio and signal amplification circuits where high current gain and efficient operation are needed.
• High-Power Switching Circuits: Ideal for circuits requiring reliable switching of large currents, such as motor controllers, light dimmers, and voltage regulation systems.

The TIP142T TO220 NPN Darlington Transistor is a reliable and efficient choice for high-current switching and amplification in power electronics. With its high current gain, low saturation voltage, and robust design, it provides excellent performance in a variety of applications, from power supplies to motor control.

Package Included:

1 x TIP142T TO220 100V 10A NPN Darlington Transistor

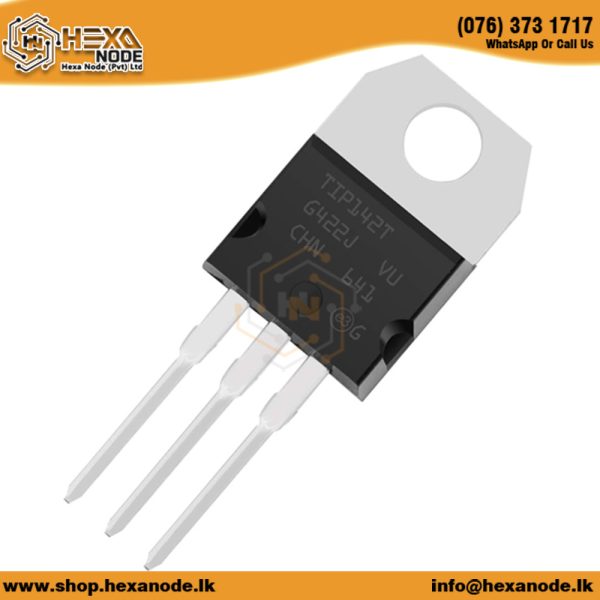

Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance.
