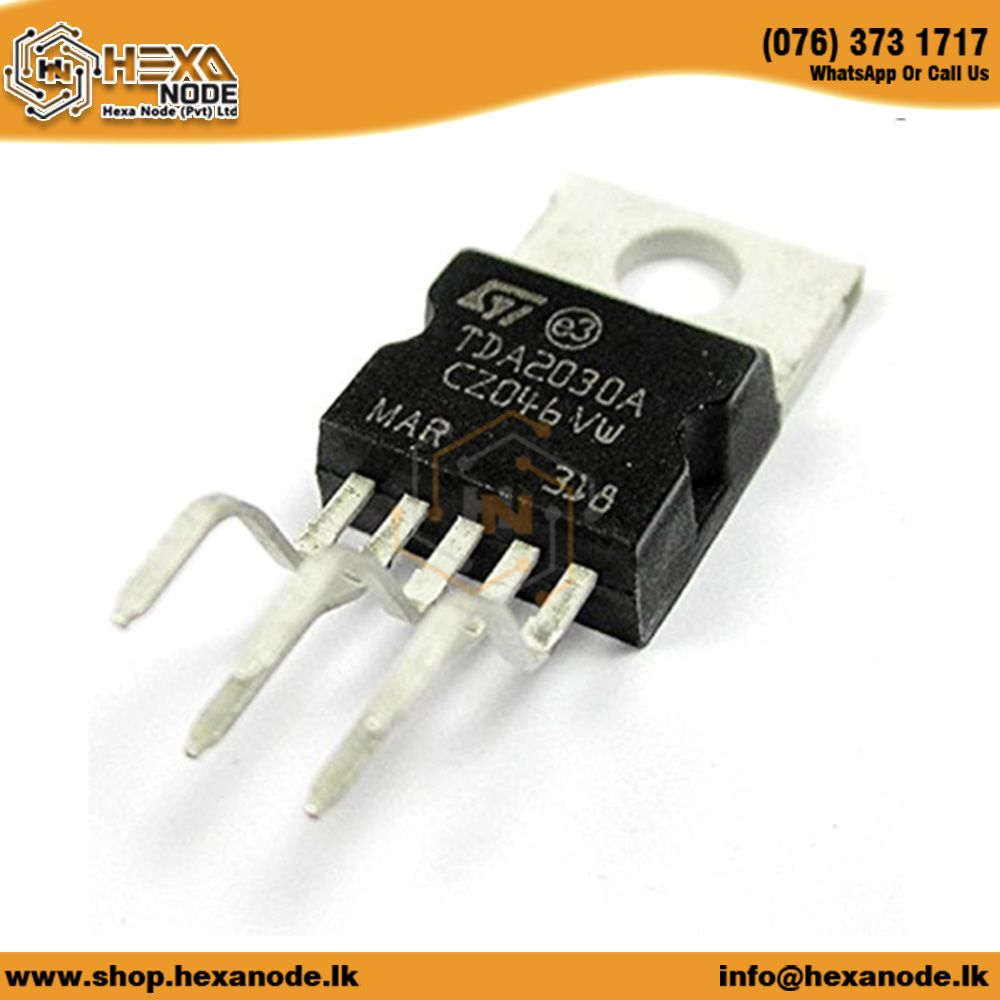

TDA2030A 14W Audio Amplifier IC
26 in stock
Short Description:
The TDA2030A is a powerful audio amplifier IC designed for high-fidelity sound amplification, offering up to 14W output power with built-in protection features.
රු70.00
26 in stock
Product Description:
The TDA2030A is a monolithic integrated circuit designed for low-frequency class-AB audio amplification. It provides a robust output power of up to 14W, making it suitable for various audio applications, including home theater systems and car audio amplifiers.
Key Features:
- Output Power: Delivers up to 14W at 4Ω load with low distortion.
- Wide Supply Voltage Range: Operates with a supply voltage of up to 36V.
- Short-Circuit Protection: Features built-in protection against short circuits to ground.
- Thermal Shutdown: Automatically shuts down in case of overheating, ensuring device safety.
- Low Harmonic Distortion: Maintains high sound quality with low total harmonic distortion (THD).
Specifications:
| Parameter | Value |
|---|---|
| Supply Voltage (max) | ±18V |
| Output Power (14V, 4Ω) | 14W |
| Output Power (±14V, 8Ω) | 8W |
| Total Harmonic Distortion (THD) | 0.1% to 0.5% |
| Input Impedance | 500kΩ |
| Gain | 30 dB |
Applications:
- Home Audio Systems: Ideal for building high-quality audio amplifiers in home setups.
- Car Audio Amplifiers: Suitable for enhancing sound systems in vehicles.
- DIY Audio Projects: Popular among hobbyists for creating custom audio solutions.
Circuit Configuration:
The TDA2030A can be configured in various ways, including single-ended and bridge configurations, allowing flexibility in design based on specific application needs.
Package Included:
1 x TDA2030A Audio Amplifier IC. Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance!
