74LS91 DIP 8-Bit Shift Register, Serial In, Serial Out, Gated Input

Product Description: SN74LS91N 8-Bit Shift Register, Serial In, Serial Out, Gated Input

The SN74LS91N is an integrated circuit (IC) featuring an 8-bit shift register with serial input and serial output. This device is part of the LS (Low Power Schottky) logic family, which provides high-speed performance while consuming low power. It is a DIP (Dual In-line Package) IC, designed to handle serial data transfer with a gated input configuration.

Key Features:

• 8-Bit Shift Register: Capable of storing and shifting 8 bits of data sequentially in a serial fashion, making it ideal for applications involving digital data transmission.
• Serial Input / Serial Output: Data is entered bit-by-bit through the serial input pin and shifted out through the serial output, allowing for efficient data handling with minimal signal interference.
• Gated Input: The register features a gated input mechanism, which allows the user to control when data is entered into the register. This feature adds flexibility by enabling or disabling the shifting process based on external control signals.
• High-Speed Operation: Operating with low power consumption, it delivers high-speed performance suitable for a variety of applications in digital circuits.
• TTL-Compatible: The SN74LS91N is compatible with TTL (Transistor-Transistor Logic) systems, making it a versatile component for a wide range of digital logic circuits.
• Low Power Consumption: As part of the Low Power Schottky family, this IC is designed to offer reduced power dissipation compared to standard logic ICs.

Applications:

• Digital Data Storage: Can be used in applications that require serial data storage, such as shift registers in microprocessor interfacing.
• Data Transmission Systems: Ideal for systems where serial communication is required, such as in communication between integrated circuits.
• Control Systems: Used in control systems that require sequential processing of digital data.
• Signal Processing: The device can process and manipulate serial data streams in applications like signal conditioning or data buffering.

Benefits:

• Space Efficiency: As a DIP 8-package IC, it is easy to integrate into a variety of circuit boards with limited space.
• Flexible Integration: The gated input allows for flexible control, which simplifies the design of digital logic systems.
• Enhanced Data Handling: Facilitates efficient serial data handling, which can be essential for digital communication systems or signal processing tasks.
• Cost-Effective: Offers an affordable solution for integrating shift registers into your digital circuits, making it an economical choice for both prototyping and production.
• Reliable Performance: Designed for reliability with high-speed, low power consumption, ensuring robust operation even in demanding applications.

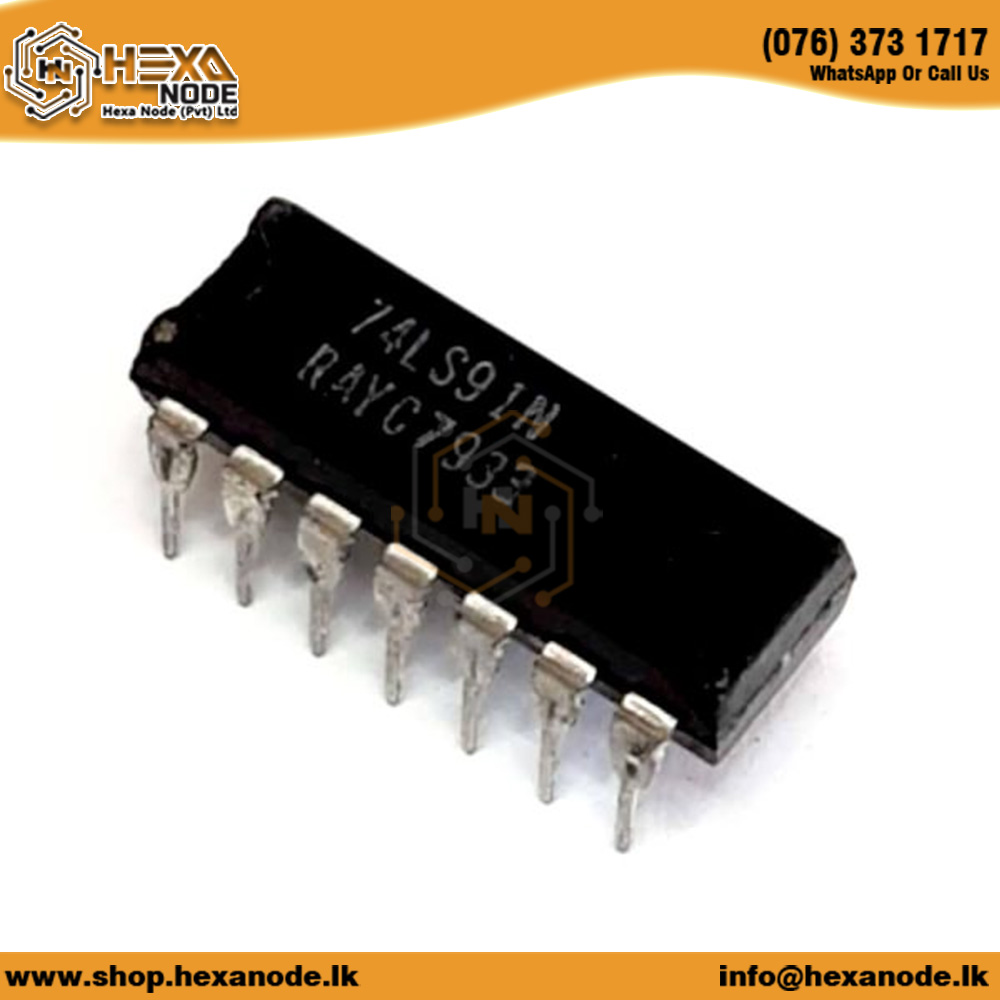

Package Included: 1 x SN74LS91N 8-Bit Shift Register Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance.!
