S9011 TO-092 NPN Silicon Epitaxial Planar Transistor

Product Description:S9011 TO-92 NPN Transistor
The S9011 is a general-purpose NPN bipolar junction transistor designed for low-power amplification and switching applications. Housed in the TO-92 package, it is suitable for a variety of electronic circuits.

Features

• NPN Configuration: The S9011 operates as an NPN transistor, allowing for effective current amplification.
• Voltage Ratings:
  Maximum Collector-Emitter Voltage (VCE): 30V
  Maximum Collector-Base Voltage (VCB): 60V
  Maximum Emitter-Base Voltage (VEB): 5V
• Current Handling Capability:
  Maximum Collector Current (IC): 30mA
• Power Dissipation:
  Maximum Power Dissipation (PD): Approximately 200mW.
• Gain Characteristics:
  DC Current Gain (hFE): Typically ranges from 100 to 300, depending on the operating conditions.

Applications
The 9011 TO-92 is utilized in various applications:

• Amplification: Ideal for low-power audio and signal amplification circuits.
• Switching Applications: Suitable for controlling small loads in various electronic devices.
• General Purpose Electronics: Effective in a variety of circuits including signal processing and control applications.

Pin Configuration
The S9011 comes in a TO-92 package with the following pin configuration:
Pin Number Pin Name Description
1 Emitter Current drains out through this pin, typically connected to ground.
2 Base Controls the biasing of the transistor, used to turn ON or OFF the transistor.
3 Collector Current flows into this pin, typically connected to the load.

Package Included:

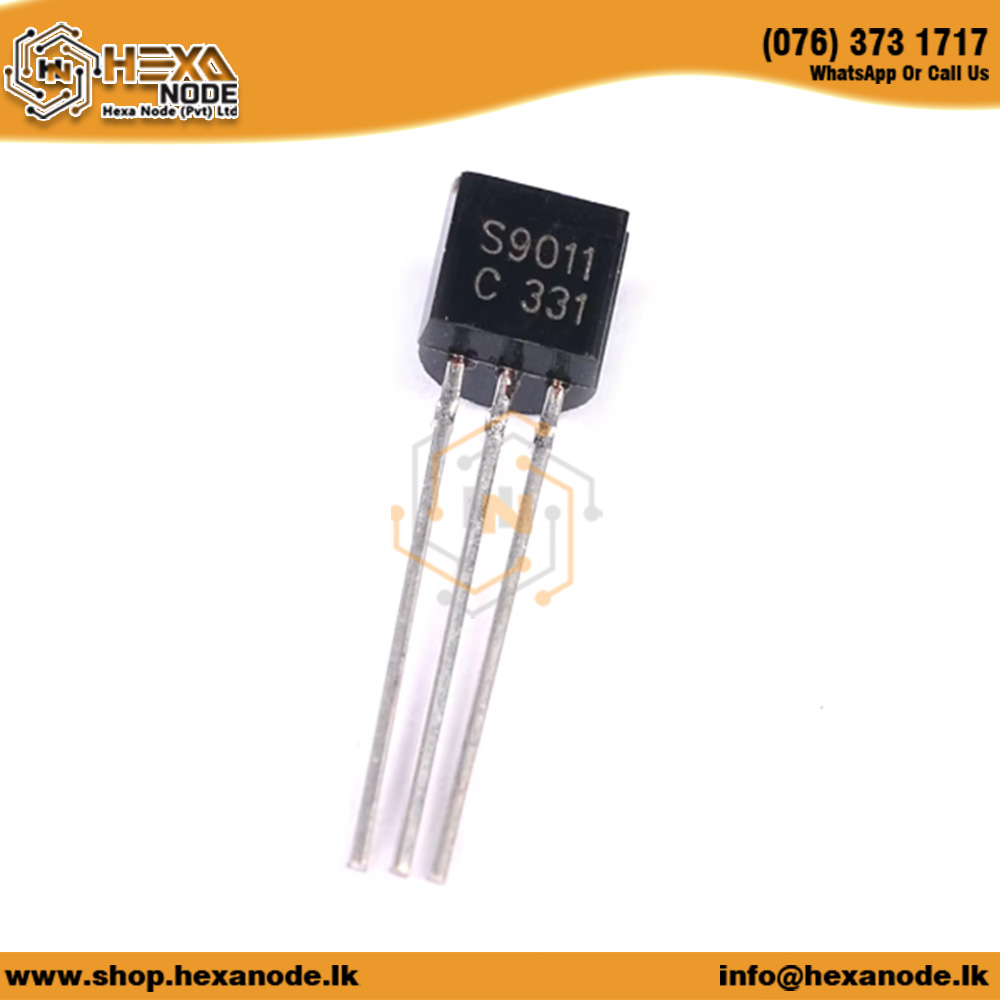

1 x S9011 TO-92 NPN Transistor. Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance!
