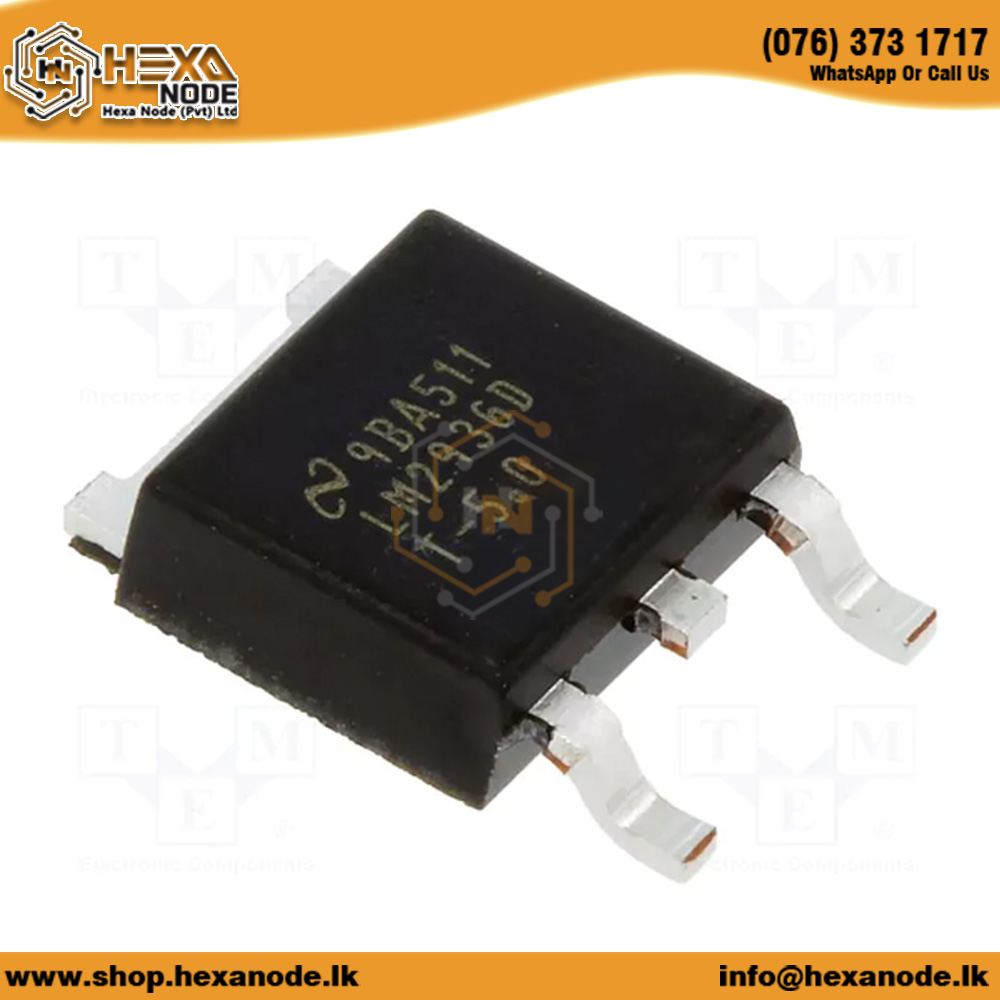

LM2936D-5V SMD TO-220 Voltage Regulator IC

Product Description: LM2936D-5V SMD TO-220 Voltage Regulator

The LM2936D-5V is an ultra-low quiescent current linear voltage regulator designed to provide a stable 5V output with a maximum input voltage of 40V. Housed in a TO-220 package, this voltage regulator is ideal for battery-powered applications and other systems requiring efficient power management.

Key Features

• Output Voltage: Fixed at 5V, providing a reliable power supply for various electronic circuits.
• Input Voltage Range: Accepts input voltages from 5.5V to 40V, allowing flexibility in power source selection.
• Quiescent Current: Extremely low quiescent current of less than 15µA at a load of 100µA, making it suitable for battery-operated devices.
• Dropout Voltage: Typically around 200mV at 50mA output current, ensuring efficient operation even with lower input voltages.
• Operating Temperature Range: Capable of functioning between -40°C to +125°C, ensuring reliability in various environmental conditions.
• Protection Features: Includes thermal shutdown and short-circuit protection for enhanced safety and reliability.

Applications

The LM2936D-5V is suitable for:

• Battery-Powered Devices: Ideal for applications where low power consumption is critical.
• Automotive Electronics: Used in automotive circuits due to its wide input voltage range and robustness.
• Portable Electronics: Commonly found in handheld devices and other portable applications requiring stable voltage regulation.

Package Included:
1 x LM2936D-5V SMD TO220 VOLTAGE REGULATOR
Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance.
