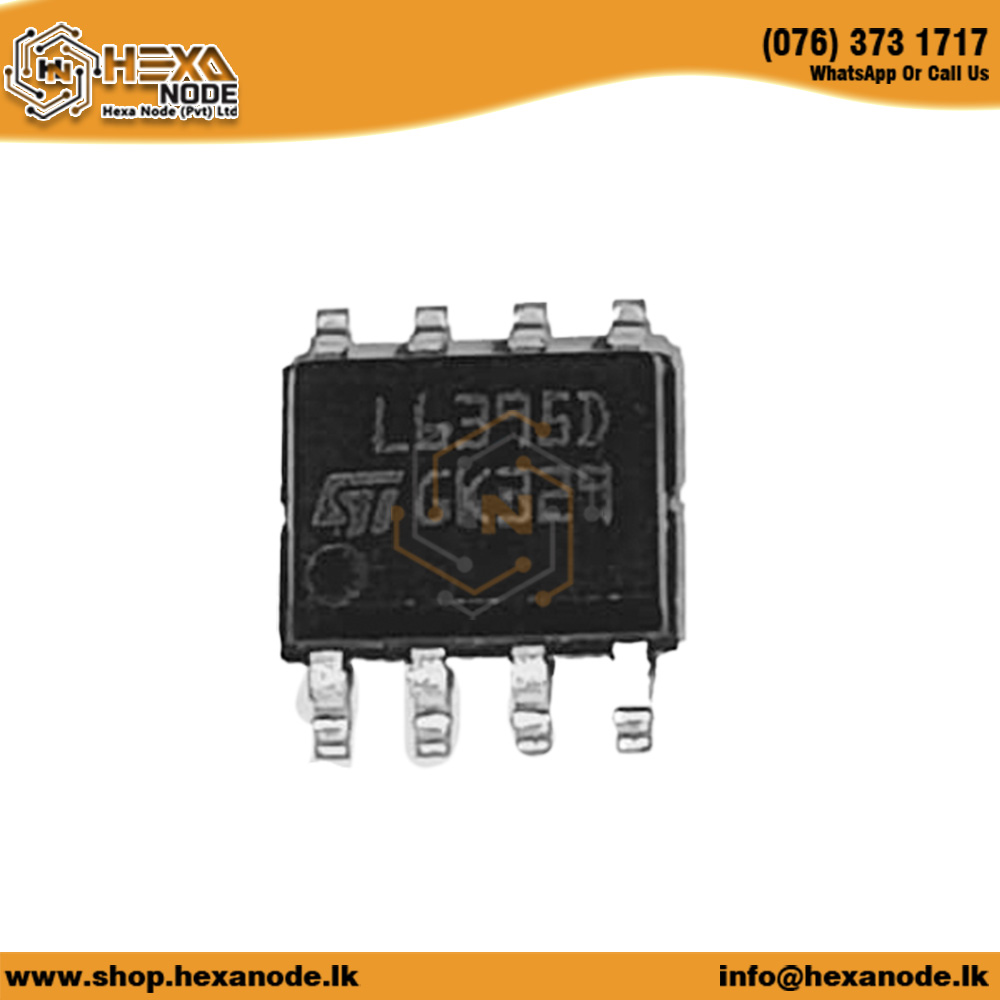

L6395 SOP High Voltage High And Low-Side Driver

Product Description: L6395 SOP High Voltage High And Low-Side Driver

The L6395 SOP High Voltage High and Low-Side Driver is a versatile and powerful high voltage driver designed for driving high-side and low-side MOSFETs or IGBTs in a variety of motor control and power conversion applications. This SOP package driver features a robust high voltage capability of up to 600V, making it ideal for applications requiring high efficiency and reliability. With its advanced design, the L6395 offers excellent switching performance and power handling, providing precise control for switching circuits, inverter systems, DC-AC converters, and motor drives. It is well-suited for industrial, automotive, and consumer electronics applications.

Features:

• High Voltage Capability: The L6395 supports a high voltage rating of up to 600V, making it suitable for use in high-voltage switching applications.
• High and Low-Side Drive: Capable of driving both high-side and low-side MOSFETs and IGBTs, offering flexibility in motor control, inverter circuits, and other switching applications.
• Advanced Switching: Provides high-speed switching and improved power efficiency, ensuring optimal performance in demanding applications.
• SOP Package: The Small Outline Package (SOP) offers a compact and space-saving solution for integration into high-density circuits.
• Dead-Time Control: Features dead-time control, ensuring minimal cross-conduction losses between high and low-side switches, enhancing overall efficiency.
• Under-Voltage Lockout (UVLO): Integrated UVLO protection helps safeguard the driver and connected components against improper voltage conditions.
• Built-in Bootstrap Diode: The integrated bootstrap diode simplifies the design and reduces external component count.
• High Drive Strength: Capable of driving high gate capacitance loads, ensuring fast switching transitions, which are crucial for high-frequency applications.

Application:

• Motor Control: Ideal for driving MOSFETs or IGBTs in motor drive circuits, including brushless DC motors (BLDC) and stepper motors in industrial and automotive systems.
• Power Conversion: Used in DC-AC and AC-DC converters, ensuring efficient and reliable power conversion in solar inverters, UPS systems, and power supplies.
• Inverter Circuits: Widely used in inverter circuits to drive power switches in renewable energy systems, such as solar inverters, and electric vehicles (EV).
• Power Supply Units: Provides reliable high-side and low-side driving in power supplies, including switch-mode power supplies (SMPS) and DC-DC converters.
• Consumer Electronics: Integrated into home appliances and consumer electronics that require efficient power switching.
• Automotive Applications: Used in automotive power electronics for high-efficiency motor drivers and power control circuits.

Package Included:

1 x L6395 SOP High Voltage High and Low-Side Driver
Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance.
