IRFZ48 TO-220 N-Channel Enhancement MOSFET

Product Description:IRFZ48 TO220
The IRFZ48 is a high-performance N-channel MOSFET designed for power switching applications. It is housed in the TO-220 package, making it suitable for a wide range of industrial and commercial applications due to its efficiency and reliability.

Features

• N-Channel Configuration: The IRFZ48 is an N-channel MOSFET, allowing for efficient switching and amplification of electrical signals.
• High Voltage Ratings:
  Maximum Drain-Source Voltage (VDS): 60V
  Maximum Gate-Source Voltage (VGS): ?20V
• Current Handling Capability:
  Continuous Drain Current (ID): 50A
  Pulsed Drain Current (IDM): Up to 190A
• Power Dissipation:
  Maximum Power Dissipation (PD): 190W
• Low On-State Resistance:
  RDS(on) at VGS = 10V: Approximately 0.018?, which minimizes power loss during operation.
• Fast Switching Speed:
  Rise Time (tr): Approximately 250ns
  Fall Time (tf): Approximately 100ns

Applications
The IRFZ48 TO220 is utilized in various applications:

• Power Supplies: Ideal for use in switch-mode power supplies (SMPS) where efficient power conversion is required.
• Motor Control Circuits: Commonly used in motor drivers to control speed and torque.
• Lighting Control: Suitable for dimming applications in LED lighting systems.
• General Power Switching Applications: Effective in a variety of high-current switching applications.

Package Included:

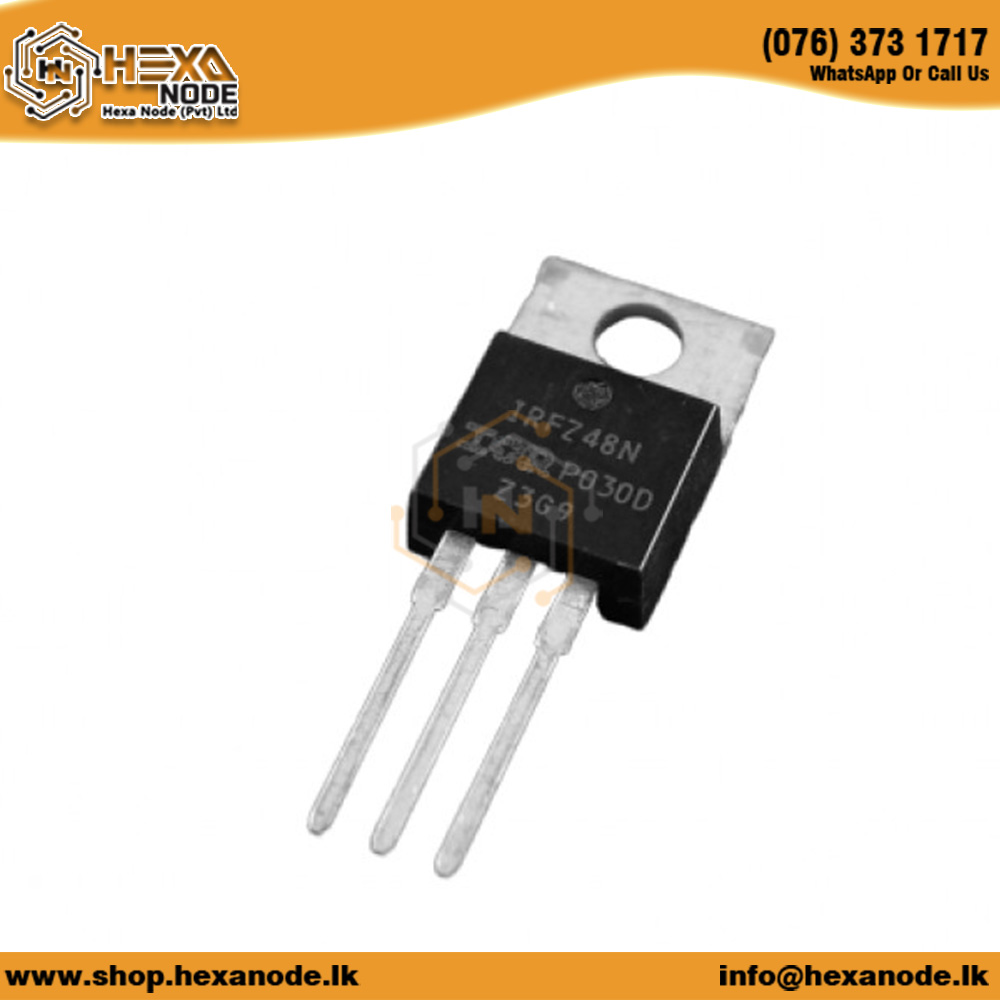

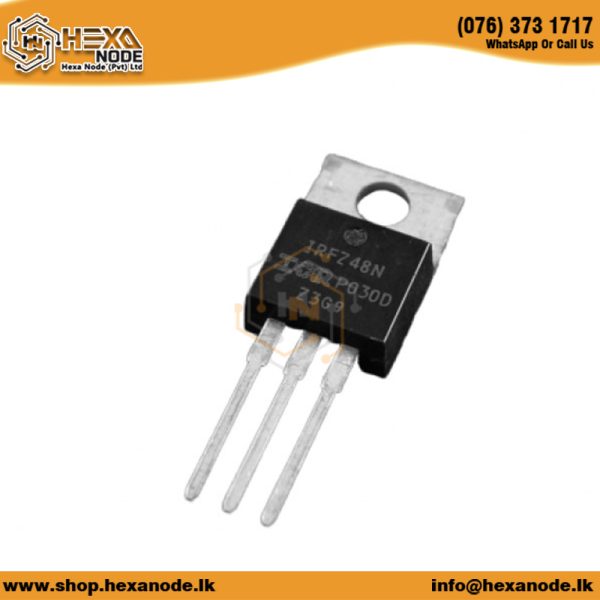

1 x IRFZ48 TO220. Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance!
