HCPL-3120 DIP 30V IGBT Gate Driver Optocopler

HCPL-3120 DIP 30V IGBT Gate Driver Optocoupler

The HCPL-3120 is a high-performance optocoupler designed to drive Insulated Gate Bipolar Transistor (IGBT) gates in power electronic systems. With a 30V output voltage, this IGBT gate driver offers robust isolation and fast switching performance, making it ideal for use in motor control, power inverters, and industrial automation. The optocoupler provides electrical isolation between the control circuitry and high-power IGBT circuits, ensuring safety and reliability. Featuring a DIP package for easy integration into designs, the HCPL-3120 ensures high-speed operation with excellent noise immunity, making it suitable for demanding applications in power conversion, renewable energy systems, and electrical drives.

Key Features:

• Voltage Rating: 30V output for driving IGBT gates
• High-Speed Switching: Enables fast switching of IGBT transistors
• Electrical Isolation: Provides robust isolation between control circuits and high-power IGBT circuits
• Low Power Consumption and high efficiency
• DIP-8 Package for easy integration into designs
• Ideal for Motor Control, Inverters, and Power Electronics

Applications:

• IGBT Gate Driving
• Motor Control Systems
• Power Inverters
• Industrial Automation
• Power Electronics
• Solar Inverters
• Electric Drives
• HVAC Systems
• DC-DC Converters

Package Included:

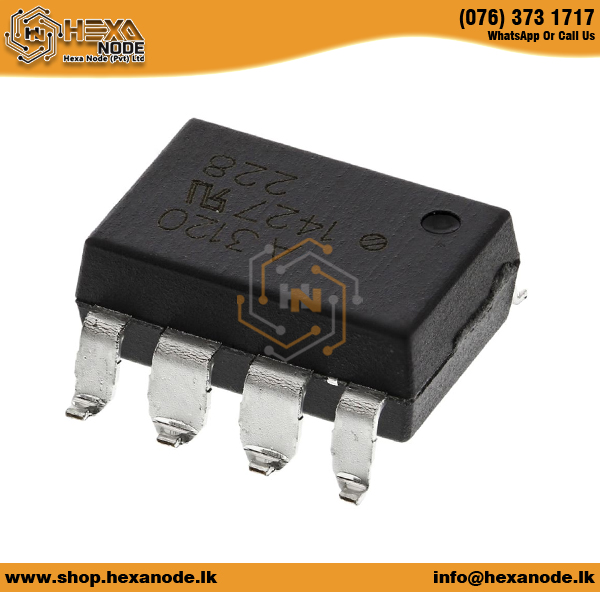

1 x HCPL-3120 DIP 30V IGBT Gate Driver Optocoupler

Please note: The product image is for illustrative purposes only. The actual product may vary slightly in appearance.

The HCPL-3120 offers high-speed, isolated gate driving for IGBT transistors, ensuring safe and reliable operation in power electronics, motor control, and other industrial applications requiring precise switching.
