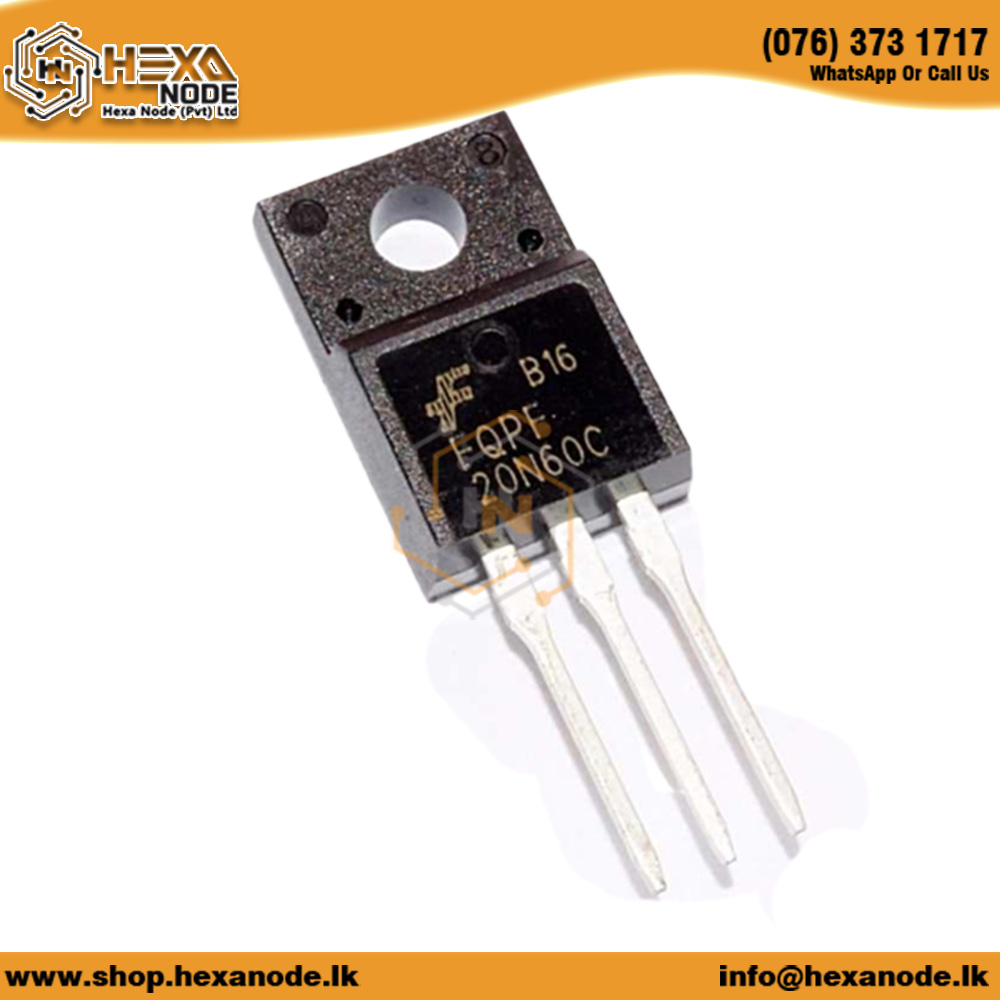

FQPF20N60 TO-220F 20A 600V N-Channel Power MOSFET

Product Description: FQPF20N60 TO220F N-Channel MOSFET
The FQPF20N60 is a high-voltage N-channel MOSFET designed for power switching applications. It features advanced technology for enhanced performance, making it suitable for various applications such as power supplies, motor control, and industrial electronics.

Features

• N-Channel Configuration: The FQPF20N60 operates as an N-channel MOSFET, allowing for efficient switching and amplification of electrical signals.
• Voltage Ratings:
  Maximum Drain-Source Voltage (VDS): 600V
  Maximum Gate-Source Voltage (VGS): ?30V
• Current Handling Capability:
  Maximum Drain Current (ID): 20A (limited by maximum junction temperature).
• Power Dissipation:
  Maximum Power Dissipation (PD): Approximately 94W.
• On-State Resistance:
  RDS(on) at VGS = 10V: Typically around 190 m?.
• Gate Charge Characteristics:
  Total Gate Charge (Qg): Approximately 75 nC.

Applications
The FQPF20N60 TO220F is utilized in various applications:

• Power Supplies: Ideal for use in switch-mode power supplies where high efficiency and low conduction losses are required.
• Motor Control Circuits: Suitable for controlling motors in various electronic devices.
• General Power Switching Applications: Effective in high-voltage switching scenarios, including AC to DC converters and power factor correction circuits.

Package Included:
1 x FQPF20N60 TO220F N-Channel MOSFET. Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance!
