EGS002 EG8010 + GNVS2113S SPWM Driver Bord (Pure Sine Wave Inverter Bord)

Product Description: EGS002 EG8010 + GNVS2113S SPWM Driver Board (Pure Sine Wave Inverter Board)

The EGS002 EG8010 + GNVS2113S SPWM Driver Board is a high-performance pure sine wave inverter driver circuit designed to generate a clean sine wave output for use in inverters and other power conversion applications. The board combines the EG8010 chip, which generates the SPWM (Sinusoidal Pulse Width Modulation) signal, with the GNVS2113S, a high-speed driver that controls the IGBTs (Insulated Gate Bipolar Transistors) or MOSFETs used to produce the inverter’s output. The result is a reliable, stable, and efficient pure sine wave output suitable for a wide range of power electronics applications, including solar energy systems, UPS (Uninterruptible Power Supplies), and home power inverters.

This combination of the EG8010 SPWM controller and the GNVS2113S driver delivers a complete solution for generating clean and efficient pure sine wave AC power from a DC source, offering significant improvements in power quality compared to square wave or modified sine wave inverters.

Key features of the EGS002 EG8010 + GNVS2113S SPWM Driver Board include:

• SPWM Technology for Pure Sine Wave Output: The EG8010 chip generates a Sinusoidal Pulse Width Modulation (SPWM) signal, which drives the power transistors (IGBTs/MOSFETs) to create a pure sine wave output. This results in high-quality AC power that is suitable for sensitive electronics, home appliances, and other devices requiring clean power.
• EG8010 SPWM Controller: The EG8010 is a dedicated SPWM controller that produces the sine wave modulation signal. It is designed to generate highly stable and precise waveform signals with low harmonic distortion. This is crucial for ensuring that the output of the inverter remains as close to a true pure sine wave as possible.
• GNVS2113S Driver: The GNVS2113S is a high-speed driver IC that is responsible for switching the IGBTs or MOSFETs at high speed, ensuring efficient power conversion. It is designed to handle high currents and voltages while maintaining smooth switching transitions to reduce losses and improve the overall efficiency of the inverter.
• High Efficiency and Low Harmonic Distortion: The use of SPWM technology minimizes harmonic distortion, producing a pure sine wave output with low total harmonic distortion (THD), making it ideal for running sensitive devices such as computers, televisions, and medical equipment.
• Wide Input Voltage Range: The board can operate over a wide range of DC input voltages, typically from 12V to 48V DC, making it suitable for a variety of DC-based power systems, such as solar power inverters, battery-powered inverters, and off-grid power solutions.
• Compact Design: The EGS002 board is designed to be compact and easy to integrate into existing inverter circuits, minimizing the size of the overall inverter system. This makes it ideal for DIY inverters, portable inverter projects, and applications where space constraints are a concern.
• Overcurrent and Overvoltage Protection: The board features built-in overcurrent and overvoltage protection, ensuring that the inverter circuit remains safe during normal operation and protects against short circuits and voltage spikes.
• User-Friendly Interface: The board is designed for easy setup and operation, with clear labeling and simple connections for input power and output control. It is suitable for both beginner and advanced users building inverter systems.
• Versatile Application: The EGS002 EG8010 + GNVS2113S SPWM Driver Board can be used in a variety of inverter designs and power conversion projects, from solar inverters to UPS systems, and can easily be incorporated into commercial and DIY inverter setups for off-grid or backup power solutions.

Applications:

• Solar Power Inverters: The EGS002 board is ideal for solar energy systems, where it can be used to convert DC power from solar panels or batteries into pure sine wave AC power for household appliances, off-grid power setups, and backup power systems.
• UPS Systems: It is commonly used in uninterruptible power supplies (UPS) to provide clean, stable power to critical loads such as computers, medical equipment, and communication devices during power outages.
• DC-AC Power Conversion: This board is perfect for any DC to AC power conversion application where high-quality power is needed, including home appliances, audio equipment, and industrial machinery.
• DIY Inverter Projects: The EGS002 is a great choice for DIY inverter enthusiasts, hobbyists, and those building their own off-grid systems or backup power supplies.
• Portable Power Systems: The board can be used in portable power systems where pure sine wave output is essential for running sensitive electronics and appliances from a battery or portable solar generator.

Package Type:

• Board-based design, designed for easy integration into various inverter configurations.

The EGS002 EG8010 + GNVS2113S SPWM Driver Board offers a complete solution for generating a pure sine wave output from DC power sources, making it an excellent choice for applications that require high-quality power conversion with minimal distortion. Whether you’re building a solar power system, UPS, or DIY inverter project, this board provides an efficient and reliable method for converting DC power into usable AC power.

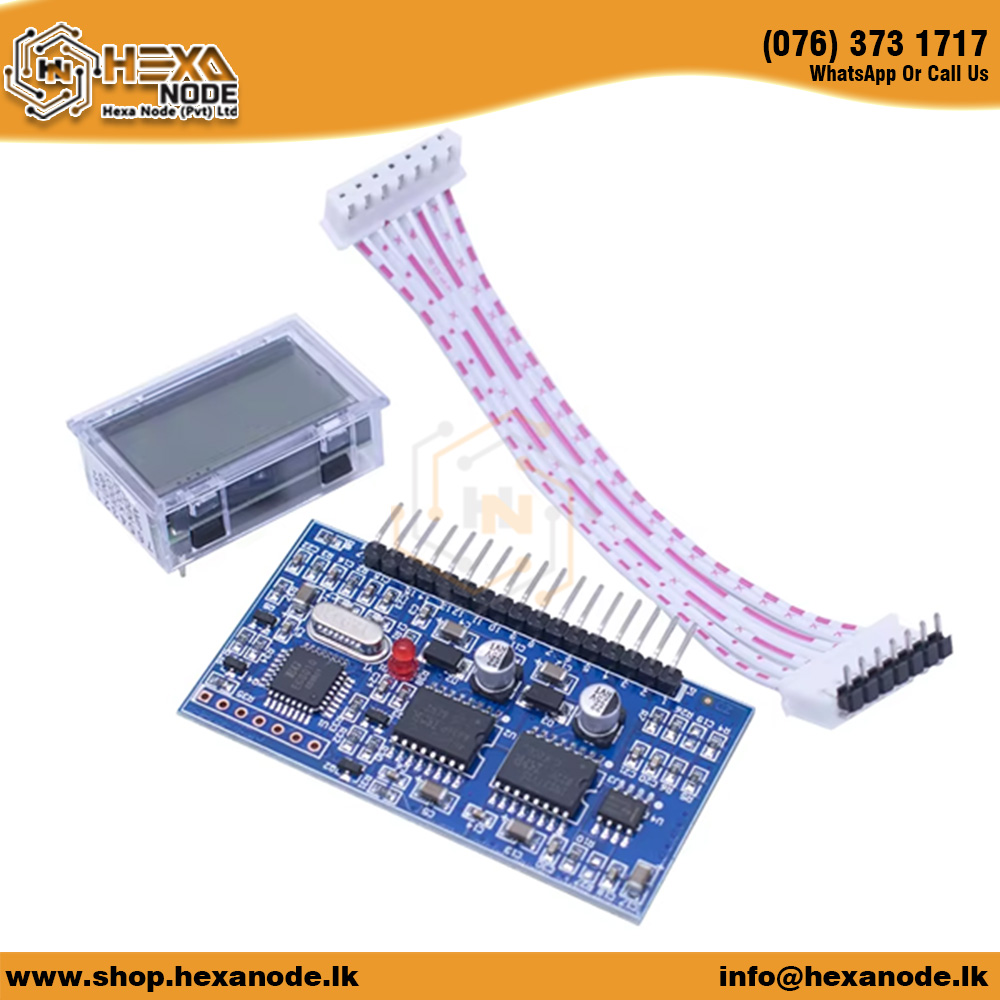

Package Included: 1 x EGS002 EG8010 + GNVS2113S SPWM Driver Board

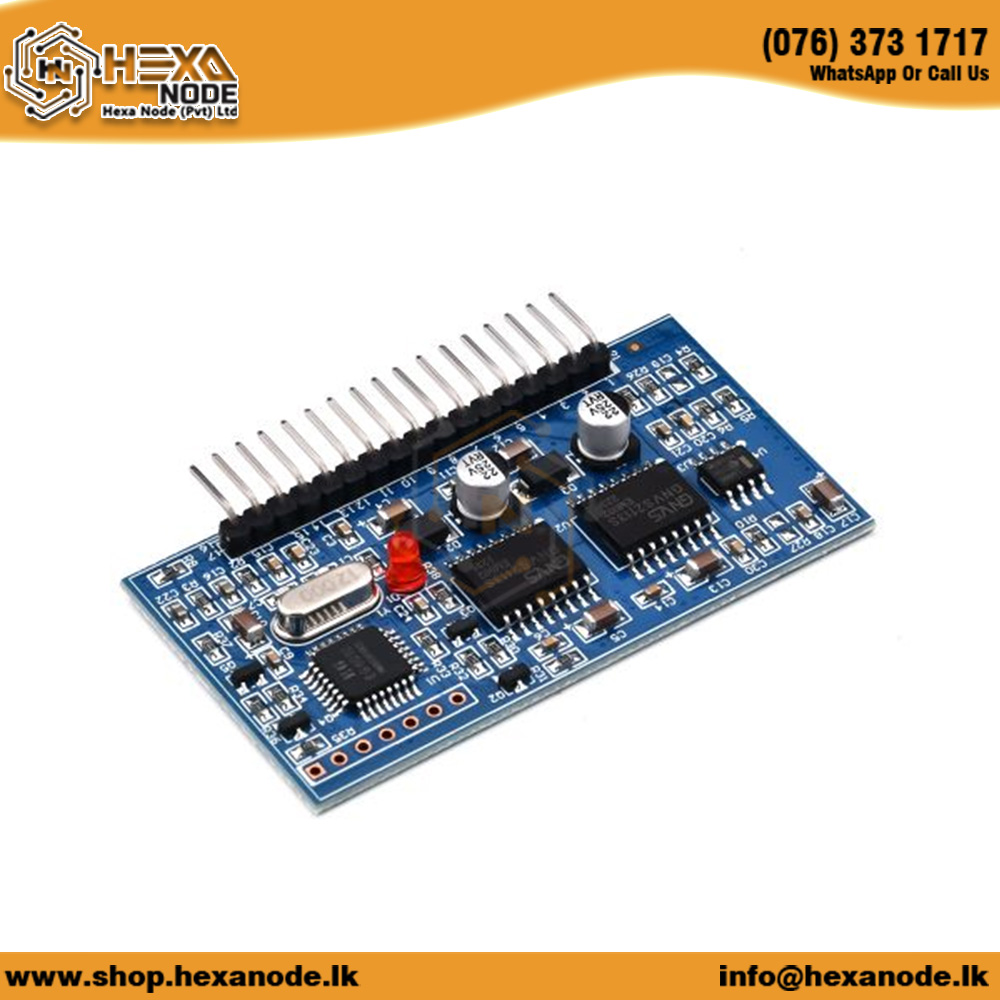

Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance!
