Product Description:D1046 TO247
The D1046 TO247 is a high-power NPN bipolar junction transistor designed for various applications, including audio amplification and switching. Housed in the robust TO-247 package, this transistor is engineered to handle significant power levels, making it suitable for demanding electronic circuits.

Features

• NPN Configuration: The D1046 is configured as an NPN transistor, ideal for amplification and switching tasks.
• High Voltage Ratings:
  Maximum Collector-Emitter Voltage (VCE): 120V
  Maximum Collector-Base Voltage (VCB): 160V
  Maximum Emitter-Base Voltage (VEB): 6V
• Collector Current Capability: Supports a maximum continuous collector current (IC) of 12A, providing versatility in circuit designs.
• Power Dissipation: Capable of dissipating up to 100W of power, ensuring efficient operation without excessive heat generation.
• Transition Frequency (fT): Offers a transition frequency of approximately 15 MHz, making it suitable for various audio and switching applications.

Application
The D1046 TO247 is utilized in various applications:

• Audio Amplifiers: Ideal for use in high-power audio amplification circuits where low distortion and high fidelity are essential.
• Switching Power Supplies: Suitable for use in switch-mode power supplies (SMPS) due to its high current handling capabilities.
• Motor Drives: Commonly used in motor control applications that require reliable performance under load.
• Industrial Power Applications: Effective in various industrial circuits requiring robust performance and efficiency.

Package Included:

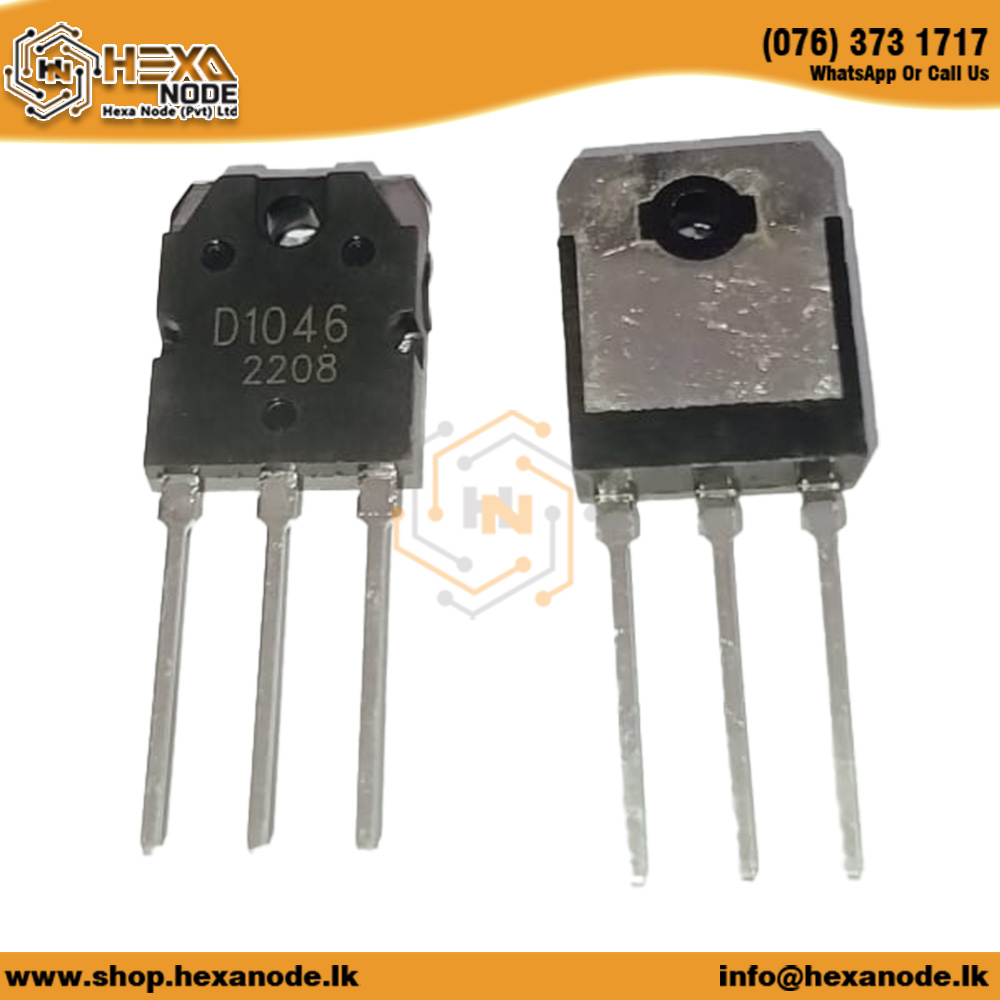

1 x D1046 TO247. Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance!
