CD4030 SOP Quad 2-Input XOR Gate (Obsoleted By 4070)

Product Description: CD4030 SOP Quad 2-Input XOR Gate (Obsoleted By 4070)

The CD4030 SOP Quad 2-Input XOR Gate is a CMOS-based integrated circuit that contains four independent 2-input XOR gates. An XOR (exclusive OR) gate outputs high when the number of high inputs is odd. This IC is ideal for implementing binary addition, parity checking, error detection, and other logic functions that require the exclusive OR operation.

This SOP-14 package houses four 2-input XOR gates, each of which operates independently with low power consumption and high-speed performance, thanks to CMOS technology. The CD4030 is designed for use in a wide range of digital circuits where XOR logic is needed, including in arithmetic logic units (ALUs), data communication systems, and error correction circuits.

However, it’s important to note that the CD4030 is obsolete and has been **replaced by the CD4070 series, which provides similar functionality with updated specifications. Despite its obsolescence, the CD4030 remains popular in legacy systems and specific applications requiring quad XOR logic gates in a compact surface-mount package.

Key Features:

• Quad 2-Input XOR Gates: The CD4030 integrates four independent 2-input XOR gates into a single SOP-14 package, providing space-saving and efficient logic solutions.
• CMOS Technology: Built using CMOS (Complementary Metal-Oxide-Semiconductor) technology, the CD4030 offers low static power consumption, high noise immunity, and high-speed operation.
• Logic Function: The XOR (exclusive OR) function outputs high if and only if one input is high and the other is low. This makes it useful for bitwise operations in digital circuits.
• Wide Voltage Range: The IC operates over a voltage range of 3V to 18V, providing compatibility with both low-voltage and standard logic systems.
• Compact SOP-14 Package: The SOP-14 surface-mount package is designed for compact PCB designs and automated assembly in modern electronics manufacturing.
• Obsolete Model: The CD4030 has been obsoleted and replaced by the CD4070 series, which provides similar functionality but with updated specifications and features.

Applications:

• Digital Logic Design: The CD4030 is used in a variety of digital circuits where exclusive OR logic is required, including combinational logic circuits, arithmetic circuits, and error detection systems.
• Parity Checking and Error Detection: XOR gates are commonly used in parity checking circuits, where they are used to check whether a given set of data bits is even or odd. This makes the CD4030 suitable for data integrity and error correction in communication systems.
• Arithmetic Logic Units (ALUs): The XOR gate is a fundamental building block of many ALUs in digital processors, enabling bitwise operations like addition, subtraction, and comparison in computing systems.
• Data Encryption: Exclusive OR gates are integral to certain types of data encryption algorithms, where they are used to modify data in a way that makes it difficult to decode without the appropriate key.
• Digital Counters and Dividers: XOR gates are also used in digital counters and frequency dividers, where they perform bitwise logical operations to control counting sequences or divide frequencies in digital systems.
• Signal Processing: The XOR logic is used in signal processing applications, such as modulation/demodulation, and error detection in communication systems.
• Legacy Systems: Due to its obsolescence, the CD4030 is still used in legacy systems where it serves as a replacement for older or out-of-production parts that use quad 2-input XOR gates.

Package Included:

1 x CD4030 SOP Quad 2-Input XOR Gate

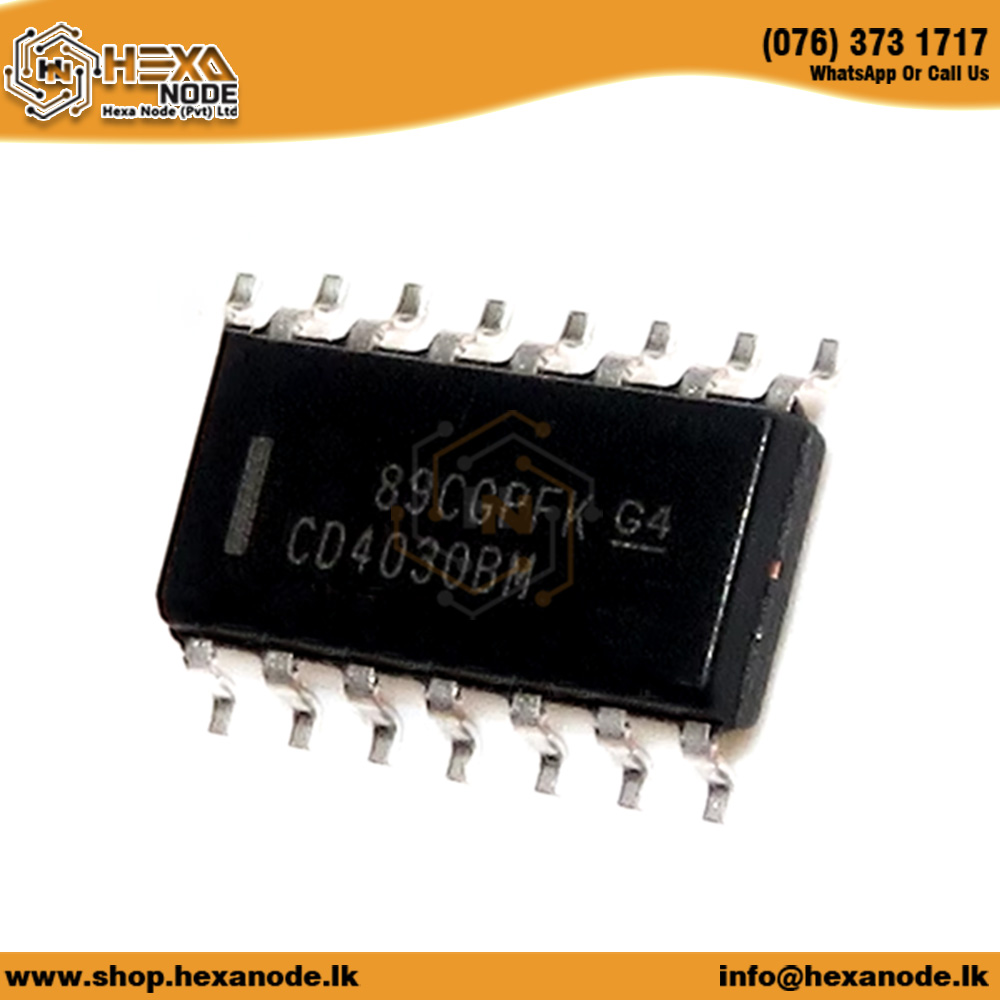

Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance.
