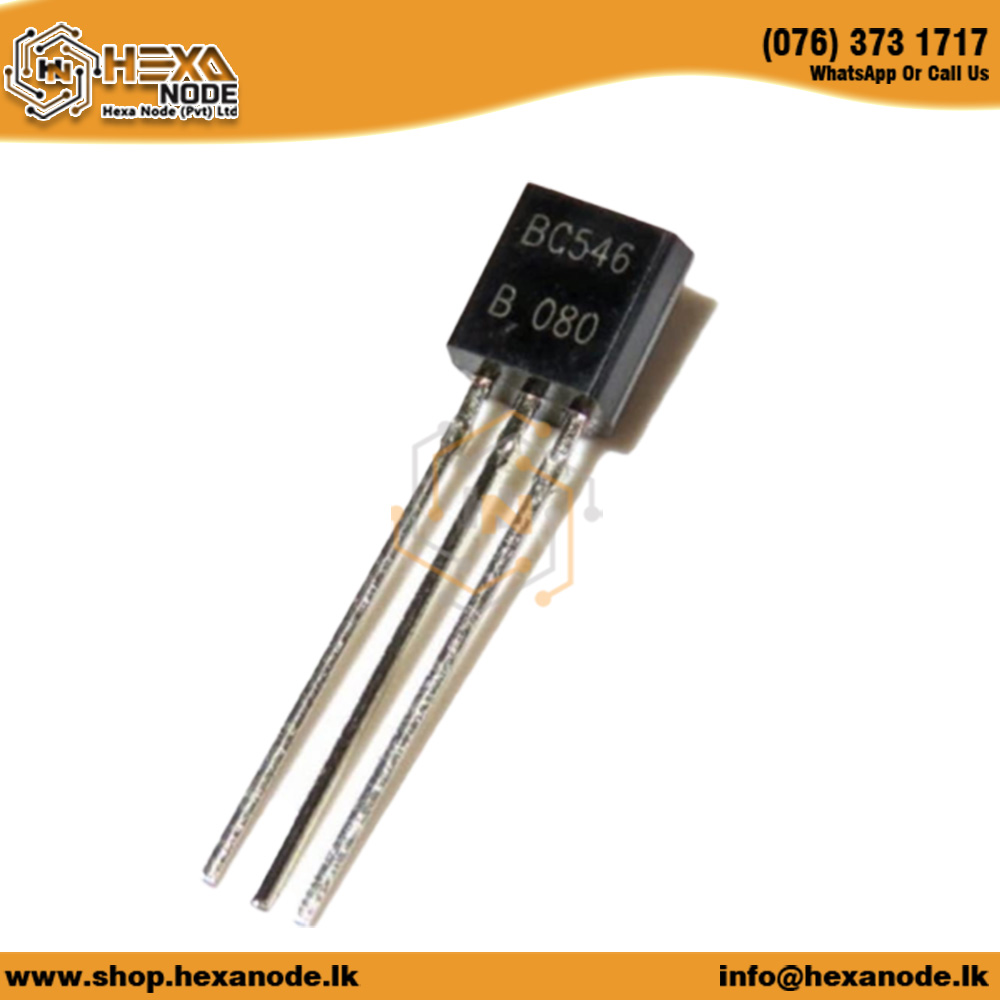

BC546 TO-92 NPN Silicon Epitaxial Planar Transistor

Product Description: BC546 TO-92 NPN Transistor
The BC546 is a high-frequency NPN transistor commonly used in low-noise amplifier designs and various electronic applications. It features a compact TO-92 package, making it suitable for space-constrained designs.

Features

• NPN Configuration: The BC546 operates as an NPN transistor, allowing for effective current amplification.
• Voltage Ratings:
  Maximum Collector-Emitter Voltage (VCEO): 65V
  Maximum Collector-Base Voltage (VCB): 80V
  Maximum Emitter-Base Voltage (VEB): 6V
• Current Handling Capability: Maximum Collector Current (IC): 100mA
• Power Dissipation: Maximum Power Dissipation (PD): 500mW.
• Gain Characteristics: DC Current Gain (hFE): Ranges from 110 to 800, depending on the specific variant.
• Transition Frequency: Transition Frequency (ft): Up to 300MHz, making it suitable for RF applications.

Applications
The BC546 TO-92 is utilized in various applications:

• Low Noise Amplifiers: Ideal for audio and RF amplification due to its low noise characteristics.
• Switching Applications: Suitable for small signal switching tasks where load current does not exceed 100mA.
• Signal Processing: Effective in small signal amplification circuits, including pre-amplifiers and audio filters.
• Darlington Pair Configurations: Can be used in combination with other transistors for higher gain applications.

Package Included:
1 x BC546 TO-92 NPN Transistor. Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance!
