BC337-40 TO92 45V 500mA NPN Amplifier Transistors

BC337-40: 45V, 500mA NPN Amplifier Transistor (TO-92)

The BC337-40 is a versatile and widely used NPN transistor designed for low- to medium-power amplification and switching applications. Encased in a TO-92 package, it is ideal for use in audio amplification, signal processing, and low-power switching circuits. This transistor is suitable for general-purpose applications where reliability, small size, and cost-efficiency are important.

Key Features:

• Type: NPN Bipolar Junction Transistor (BJT)
• Voltage Rating (Vceo): 45V maximum collector-emitter voltage
• Current Rating (Ic): 500mA maximum collector current
• Package: TO-92, through-hole package for easy integration into a wide range of applications
• High Gain (hFE): Typically between 110 and 800, offering excellent amplification for low-power signals
• Low Saturation Voltage (Vce(sat)): Efficient switching with low power loss
• Bandwidth: Capable of handling high-frequency signals, making it suitable for both amplification and switching circuits
• Temperature Range: -55°C to +150°C, providing reliable performance in a variety of environments

Applications:

• Audio Amplification: Widely used in small-signal amplification circuits, such as in audio pre-amplifiers, tone control, and other low-power audio applications.
• Switching Circuits: Commonly used in low-power switching applications, such as signal switching, relay drivers, and light control circuits.
• Signal Processing: Ideal for use in small electronic devices where signal amplification and modulation are required.
• Transistor Amplifiers: Suitable for RF and analog applications that need a compact, reliable amplification solution.
• General Purpose: Works in a variety of general-purpose applications where medium current, low voltage, and high gain are needed.

Benefits:

• Compact and Reliable: The TO-92 package allows for integration in compact electronic circuits with through-hole mounting.
• High Gain: Provides high amplification for small signals, making it ideal for audio and RF circuits.
• Good Switching Characteristics: Efficient in both switching and amplification tasks, providing flexibility in circuit design.
• Wide Temperature Range: Works well in a variety of environmental conditions, suitable for automotive, industrial, and consumer electronics.
• Affordable: The BC337-40 offers a cost-effective solution for a wide range of applications in electronics.

The BC337-40 is a reliable, cost-effective NPN transistor, ideal for use in small-signal amplification, switching, and general-purpose circuits requiring medium current handling.

Package Included:

• 1 x BC337-40 TO-92 45V 500mA NPN Transistor

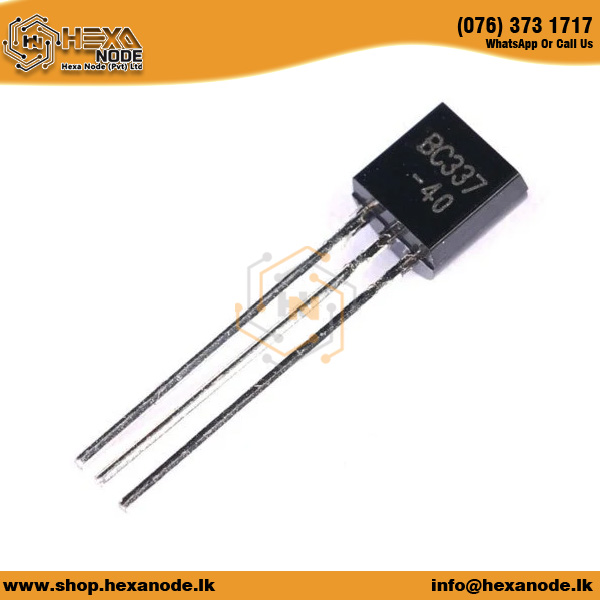

Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance.

Choose the BC337-40 NPN transistor for reliable performance and versatility in your electronic designs!
