74LS42N DIP BCD To Decimal Decoder

Product Description: 74LS42N DIP BCD to Decimal Decoder

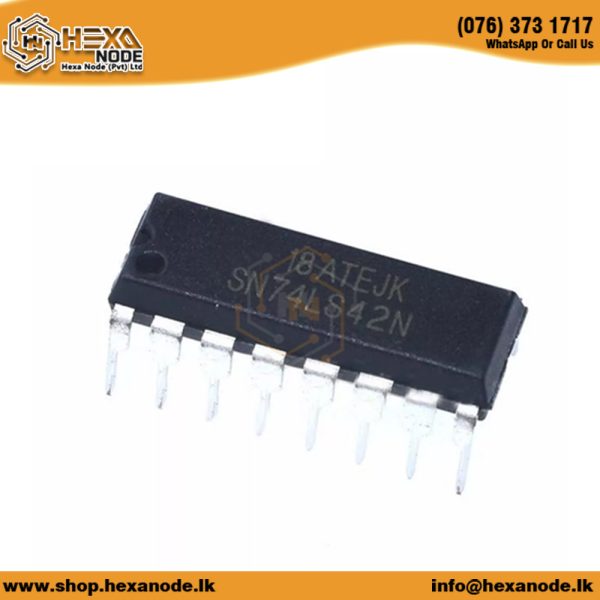

The 74LS42N is a BCD to Decimal Decoder IC in a DIP-16 package, designed for converting Binary Coded Decimal (BCD) inputs into their corresponding decimal outputs. This IC features a 4-bit BCD input, which is decoded into a 10-output decimal signal. The 74LS42N is ideal for applications in digital systems that require efficient decoding of BCD values into decimal form for display purposes or further digital processing. Its low power consumption and high-speed operation make it a valuable component for digital circuits in both consumer and industrial applications.

Features:

• BCD to Decimal Conversion: Converts a 4-bit Binary Coded Decimal (BCD) input into a 10-output decimal signal, providing a simple solution for BCD to decimal decoding.
• 10 Output Lines: The IC provides 10 active low output lines corresponding to the decimal values 0 through 9, ensuring correct output for each BCD input combination.
• Standard DIP Package: Housed in a DIP-16 form factor, making it easy to integrate into breadboards, circuit boards, and various digital systems.
• Low Power Consumption: Designed to operate with low power, making it suitable for energy-efficient applications and battery-powered devices.
• High-Speed Operation: Fast switching times ensure that the BCD to decimal decoding happens with minimal delay, ideal for high-speed systems.
• TTL Compatible: Fully compatible with Transistor-Transistor Logic (TTL) systems, ensuring easy integration into existing digital circuits.
• Wide Voltage Range: Operates within a supply voltage range of 4.75V to 5.25V, offering flexibility in various power supply configurations.

Applications:

• BCD to Decimal Display: Ideal for driving 7-segment displays or other decimal-based displays in devices like digital clocks, counters, or frequency meters.
• Digital Systems: Can be used in microprocessor-based systems where BCD values need to be decoded for further processing or display.
• Counters and Timers: Commonly used in applications that require decimal counting or timekeeping, such as clocks or event counters.
• Embedded Systems: Suitable for embedded systems that need to decode BCD data into human-readable decimal format for output to external devices.
• Industrial Equipment: Used in industrial systems for converting BCD inputs into corresponding decimal values for monitoring or control purposes.
• Communication Systems: Can be employed in communication equipment to decode BCD data for signal processing and display.

Package Included:

• 1 x 74LS42N BCD to Decimal Decoder IC
  Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance.
