5N60 TO-220 5A, 600V N-CHANNEL POWER MOSFET

Product Description: 5N60 TO220 MOSFET
The 5N60 is a high-voltage N-channel MOSFET designed for power switching applications. Housed in the TO-220 package, it is suitable for various applications, including power supplies, motor control, and other high-efficiency switching circuits.

Features

• N-Channel Configuration: The 5N60 operates as an N-channel MOSFET, allowing for efficient switching and amplification of electrical signals.
• Voltage Ratings:
  Maximum Drain-Source Voltage (VDS): 600V
  Maximum Gate-Source Voltage (VGS): ?30V
• Current Handling Capability:
  Maximum Drain Current (ID): 5A
• Power Dissipation:
  Maximum Power Dissipation (PD): Approximately 100W.
• On-State Resistance:
  RDS(on) at VGS = 10V: Typically around 1.8? to 2.5?.
• Gate Threshold Voltage:
  VGS(th): Typically ranges from 2V to 4V.
• Thermal Characteristics:
  Maximum Junction Temperature (Tj): 150?C.

Applications
The 5N60 TO220 is utilized in various applications:

• Power Supplies: Ideal for use in switch-mode power supplies where high efficiency is required.
• Motor Control Circuits: Suitable for controlling motors in various electronic devices.
• General Power Switching Applications: Effective in a variety of high-voltage switching scenarios, including AC to DC converters and PWM motor controls.

Package Included:

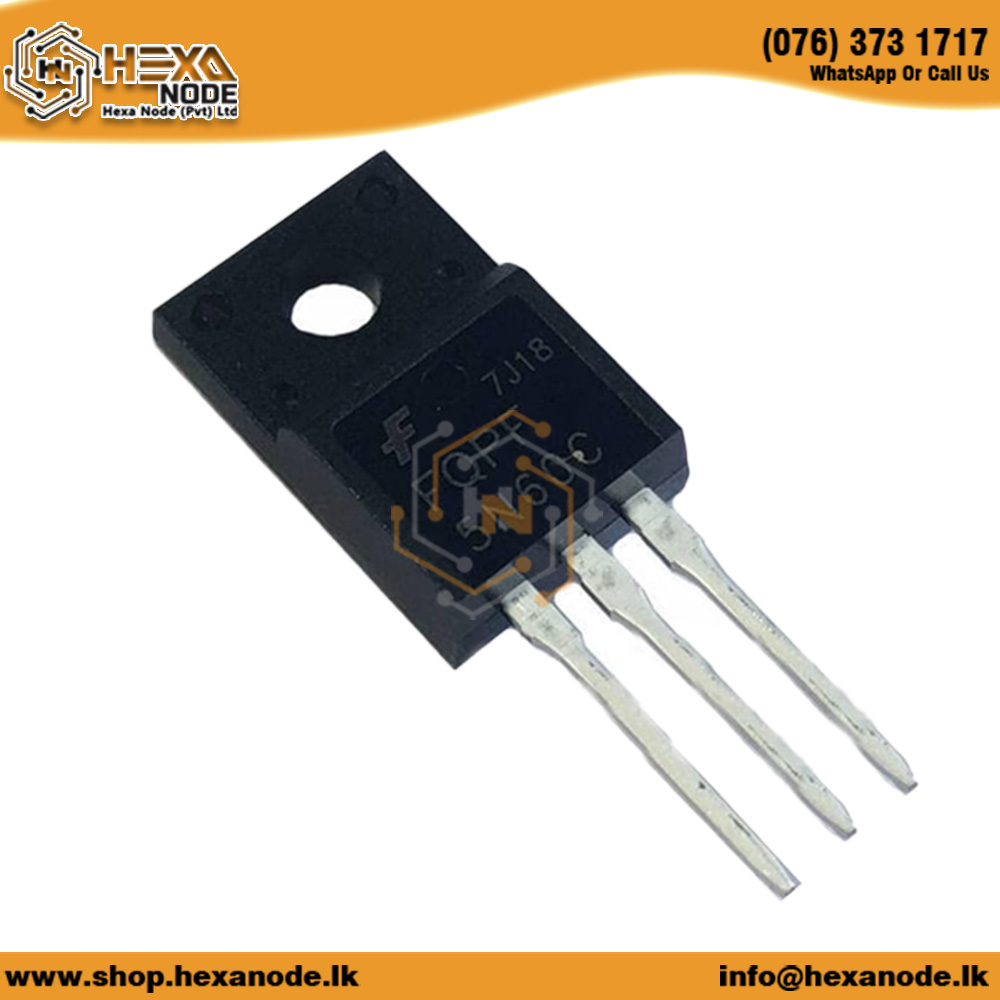

1 x 5N60 TO220 MOSFET. Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance!
