2SD2624 / D2624 TO-264 Color TV Horizontal Deflection Output Applications Transistor

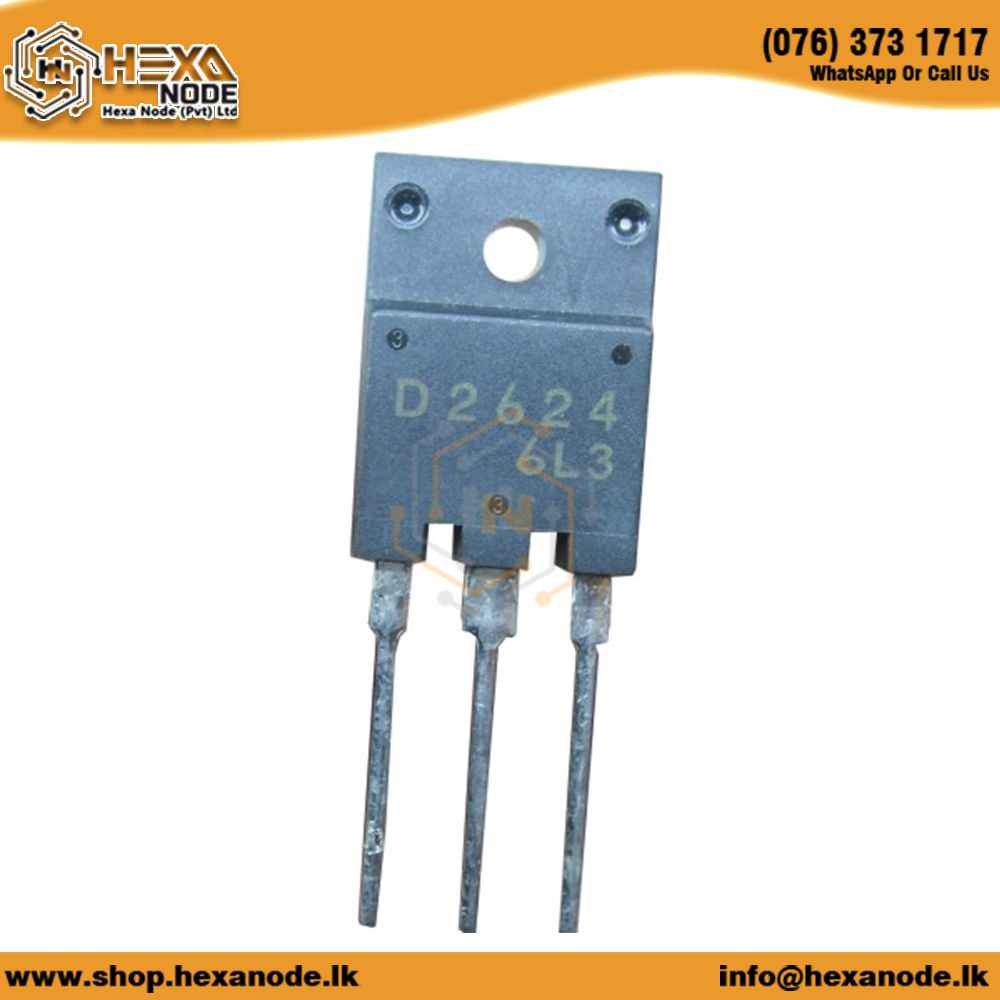

Product Description:D2624 TO264
The D2624 TO264 is a high-performance NPN power transistor designed for high-voltage applications, particularly suitable for use in horizontal deflection circuits in televisions and other high-power electronic devices. This transistor is known for its robust construction and ability to handle significant power levels, making it ideal for demanding electronic circuits.

Features

• NPN Configuration: The D2624 is configured as an NPN transistor, making it suitable for high-power amplification and switching tasks.
• High Voltage Ratings:
  Maximum Collector-Emitter Voltage (VCE): 1500V
  Maximum Collector-Base Voltage (VCB): 1500V
  Maximum Emitter-Base Voltage (VEB): 5V
• Collector Current Capability: Supports a maximum continuous collector current (IC) of 6A, providing versatility in circuit designs.
• Power Dissipation: Capable of dissipating up to 60W of power, ensuring efficient operation without excessive heat generation.
• On-chip Damper Diode: Features an integrated damper diode to enhance performance in switching applications.

Application
The D2624 TO264 is utilized in various applications:

• Horizontal Deflection Circuits: Ideal for use in color televisions and monitors where high voltage and reliability are essential.
• Switching Power Supplies: Suitable for use in switch-mode power supplies (SMPS) due to its high voltage and current handling capabilities.
• Audio Amplifiers: Commonly used in audio amplification circuits that require high fidelity and low distortion.
• General Purpose Electronics: Effective in a variety of general-purpose electronic circuits requiring robust performance.

Package Included:
1 x D2624 TO264. Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance!
