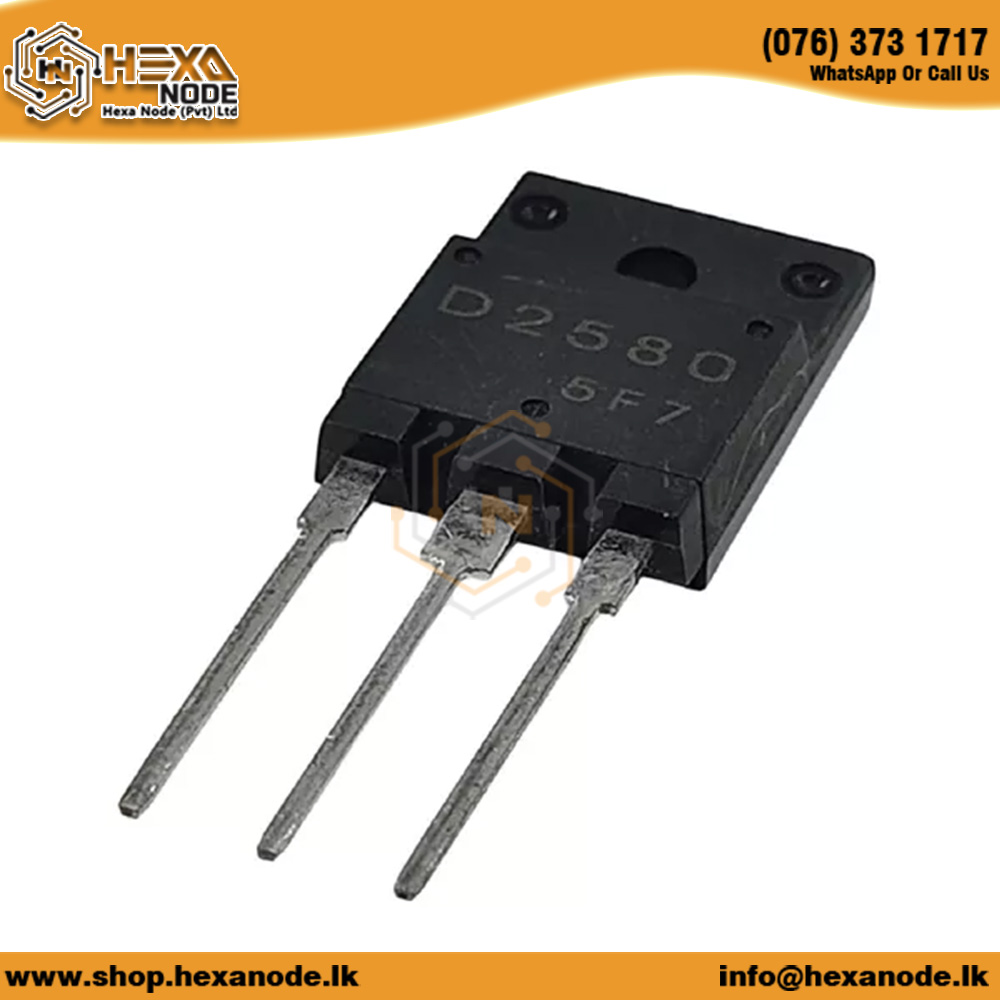

2SD2580 / D2580 TO264 Color TV Horizontal Deflection Output Applications Transistor

Product Description:D2580 (2SD2580)
The D2580, also known as 2SD2580, is a high-voltage NPN transistor designed for applications requiring high speed and reliability. This transistor is particularly suitable for use in horizontal deflection circuits in color televisions and other high-voltage applications.

Features

• NPN Configuration: The D2580 is configured as an NPN transistor, making it ideal for amplification and switching tasks.
• High Voltage Ratings:
  Maximum Collector-Emitter Voltage (VCE): 1500V
  Maximum Collector-Base Voltage (VCB): 1500V
  Maximum Emitter-Base Voltage (VEB): 5V
• Collector Current Capability: Supports a maximum continuous collector current (IC) of approximately 8A, providing versatility in circuit designs.
• Power Dissipation: Capable of dissipating up to 60W of power, ensuring efficient operation without excessive heat generation.
• On-chip Damper Diode: Features an integrated damper diode to enhance performance in switching applications.
• Low Saturation Voltage: Designed for low saturation voltage, which improves efficiency in power applications.

Application
The D2580 (2SD2580) is utilized in various applications:

• Horizontal Deflection Circuits: Ideal for use in color televisions and monitors where high voltage and reliability are essential.
• Switching Power Supplies: Suitable for use in switch-mode power supplies (SMPS) due to its high voltage and current handling capabilities.
• Audio Amplifiers: Commonly used in audio amplification circuits that require high fidelity and low distortion.
• General Purpose Electronics: Effective in a variety of general-purpose electronic circuits requiring robust performance.

Package Included:
1 x D2580 (2SD2580). Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance!
