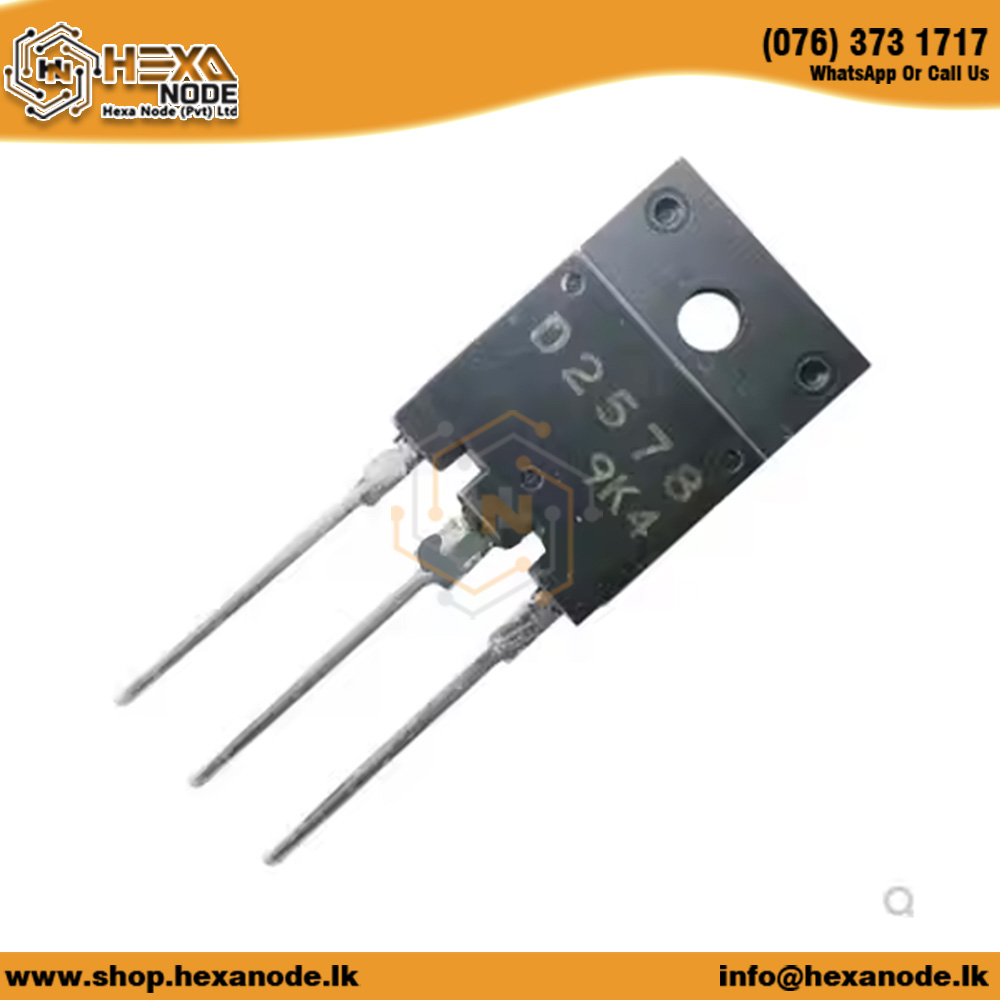

2SD2578 / D2578 TO264 Color TV Horizontal Deflection Output Applications Transistor

Product Description: D2578 TO264
The D2578 TO264 is a high-performance NPN transistor designed for high-voltage applications, particularly suitable for power amplification and switching. This transistor is notable for its robust construction and ability to handle significant power levels, making it ideal for demanding electronic circuits such as power supplies and motor drives.

Features

• NPN Configuration: The D2578 is configured as an NPN transistor, making it suitable for high-power amplification and switching tasks.
• High Voltage Ratings:
  Maximum Collector-Emitter Voltage (VCE): 800V
  Maximum Collector-Base Voltage (VCB): 1500V
  Maximum Emitter-Base Voltage (VEB): 5V
• Collector Current Capability: Supports a maximum continuous collector current (IC) of 8A, providing versatility in circuit designs.
• Power Dissipation: Capable of dissipating up to 60W of power, ensuring efficient operation without excessive heat generation.
• Integrated Damper Diode: Features an on-chip damper diode to enhance performance in switching applications.

Application
The D2578 TO264 is utilized in various applications:

• Power Amplifiers: Ideal for use in audio amplification circuits where high fidelity and low distortion are essential.
• Switching Power Supplies: Suitable for use in switch-mode power supplies (SMPS) due to its high voltage and current handling capabilities.
• Motor Drives: Commonly used in motor control applications that require reliable performance under load.
• General Purpose Electronics: Effective in a variety of general-purpose electronic circuits requiring robust performance.

Package Included:
1 x D2578 TO264. Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance!
