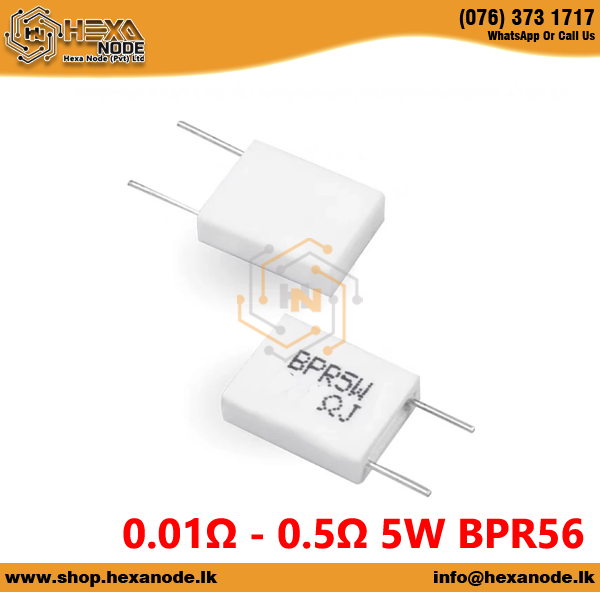

0.01Ω – 0.5Ω 5W BPR56 Vertical Mounting Wire Wound Ceramic Non-Inductive Cement Resistor
29 in stock
High-quality 5W BPR56 low-ohm wire-wound ceramic resistor designed for accurate current sensing and power control. Non-inductive, vertically mounted, and ideal for industrial, SMPS, motor drivers, and high-current applications. Available from 0.01Ω to 0.5Ω.
රු45.00 – රු85.00
Product Description : 0.01Ω – 0.5Ω 5W BPR56 Vertical Mounting Wire Wound Ceramic Non-Inductive Cement Resistor
(Values: 0.01, 0.02, 0.05, 0.1, 0.12, 0.15, 0.2, 0.22 (Normal & Original), 0.25 (Normal & Original), 0.33, 0.47, 0.5 Ω)
⭐ Short Key Description
High-quality 5W low-ohm BPR56 wire-wound ceramic resistors designed for precise current sensing, power control, and high-load industrial applications. Features vertical mounting, non-inductive construction, stable performance, and excellent heat dissipation.
⭐ Features
-
High-power 5W ceramic wire-wound construction
-
Low-ohm values ideal for current sensing and load management
-
Non-inductive design for high-frequency and accuracy-critical circuits
-
Vertical mounting for compact board layouts
-
High temperature stability and long service life
-
Suitable for industrial, automotive, and power electronics
-
Available in Normal & Original variants (0.22Ω, 0.25Ω)
-
Excellent for high current, low-resistance applications
⭐ Available Values
0.01Ω, 0.02Ω, 0.05Ω, 0.1Ω, 0.12Ω, 0.15Ω, 0.2Ω, 0.22Ω (Normal & Original), 0.25Ω (Normal & Original), 0.33Ω, 0.47Ω, 0.5Ω
⭐ Applications
-
Current sensing / current measurement
-
Power supplies (SMPS, AC/DC converters)
-
Motor driver circuits
-
Battery BMS and protection circuits
-
Audio amplifiers & speaker protection boards
-
Inverter and UPS systems
-
High-power industrial control circuits
-
Charging circuits & DC load management
-
Voltage dividers for high-current paths
⭐ Specifications
| Parameter | Description |
|---|---|
| Resistor Type | Wire Wound, Ceramic, Non-Inductive |
| Series | BPR56 Vertical Mount |
| Power Rating | 5W |
| Resistance Values | 0.01Ω – 0.5Ω |
| Tolerance | ±5% (Typical) |
| Mounting Type | Vertical THT |
| Construction | Ceramic Body, Copper/Nickel Leads |
| Operating Temperature | –55°C to +155°C |
| Stability | High heat & current stability |
| Application Category | Power Electronics / Industrial |
Package Included
- 1 x 5W 0.01Ω – 0.5Ω 5W BPR56 Vertical Mounting Wire Wound Ceramic Non-Inductive Cement Resistor (Value as select)
“Please note that the product image is for illustrative purposes only. The actual product may vary slightly in appearance.”
| Resistance | 0.01Ω, 0.02Ω, 0.05Ω, 0.12Ω, 0.15Ω, 0.1Ω, 0.22Ω Normal, 0.22Ω Original, 0.25Ω Normal, 0.25Ω Original, 0.2Ω, 0.33Ω, 0.47Ω, 0.5Ω, 0Ω, 15Ω, 27Ω |
|---|
